Ø3 - Ø66mm diameter Vibration Motor

Coin, Cylindrical, Encapsulated Motors

Wide range of DC vibration motors
with off-the-shelf sampling

Uniqualis designs and manufactures a wide range of high-quality,cost-effective, 3mm-66 mm diameter vibration motors.

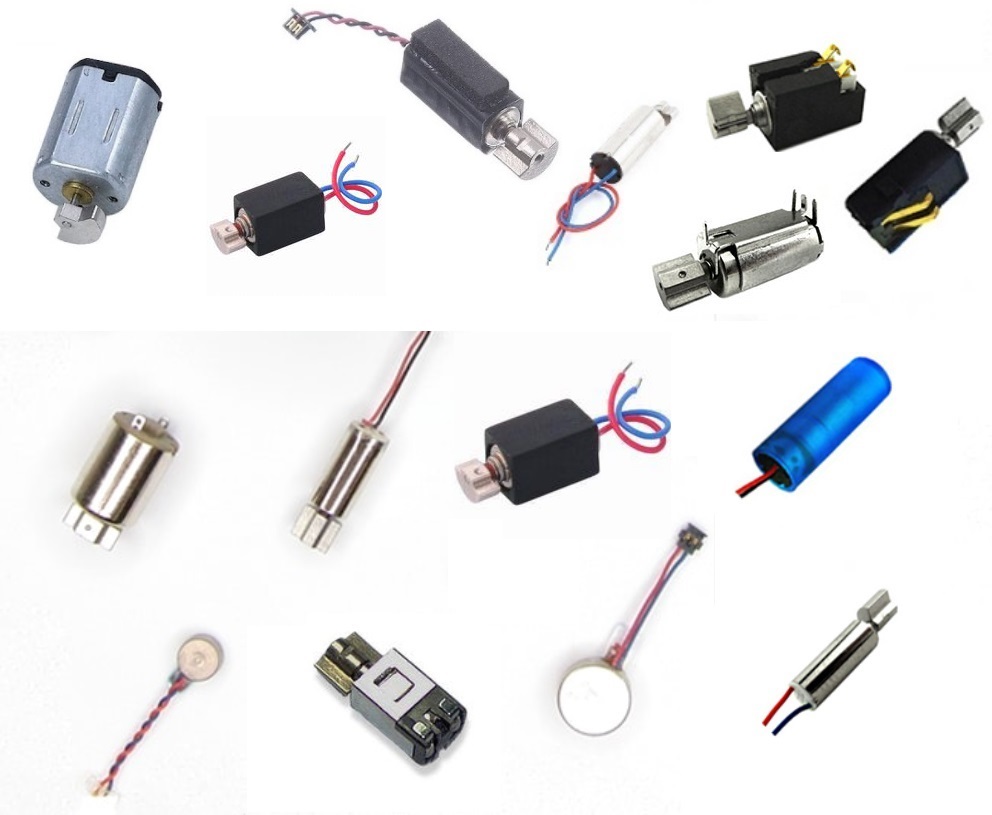

Six vibration motor technologies

Cylindrical vibration motors belong to the ERM (eccentric rotating mass) type, and the eccentric rotating mass is visible on the outside and is not protected as below:

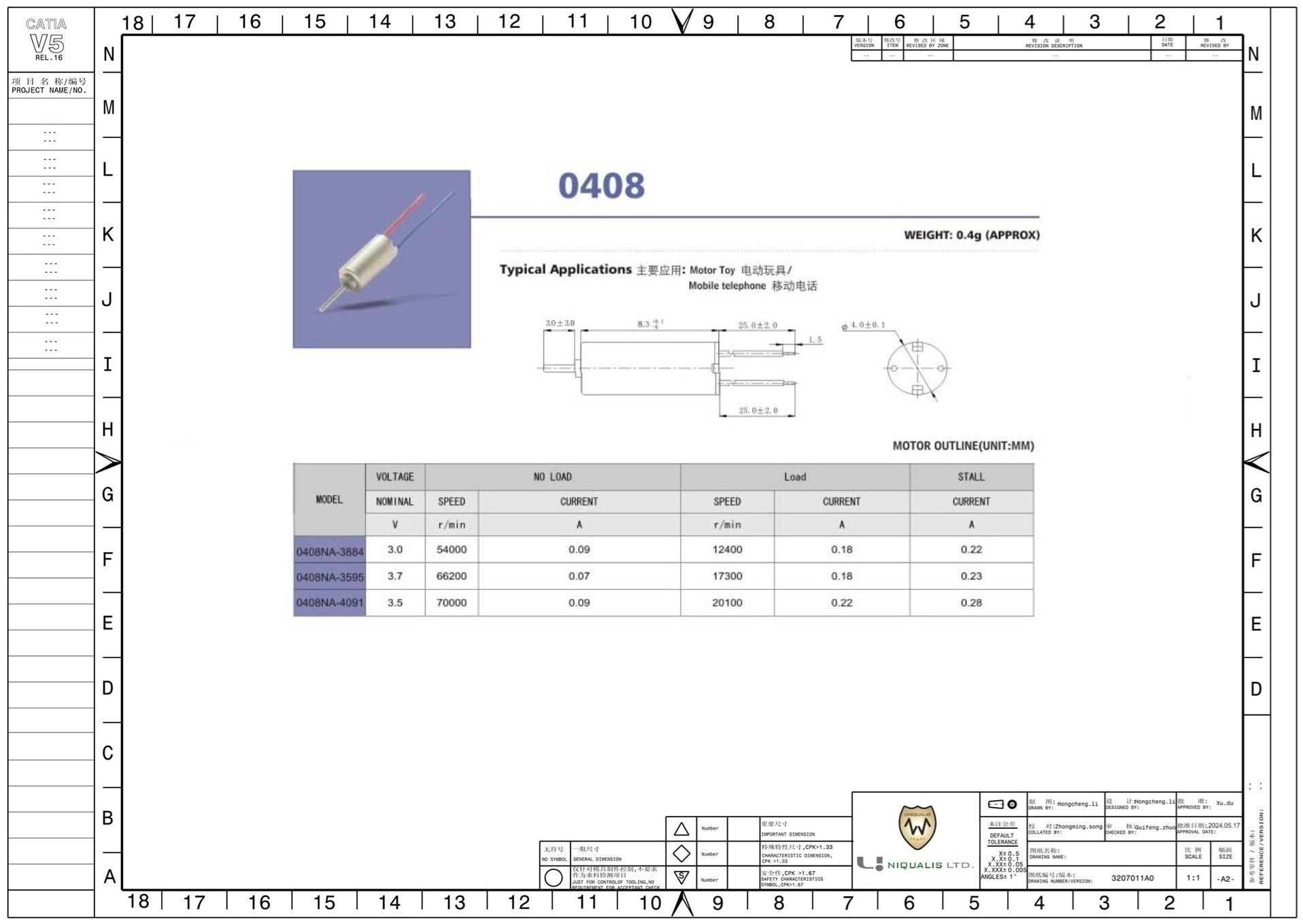

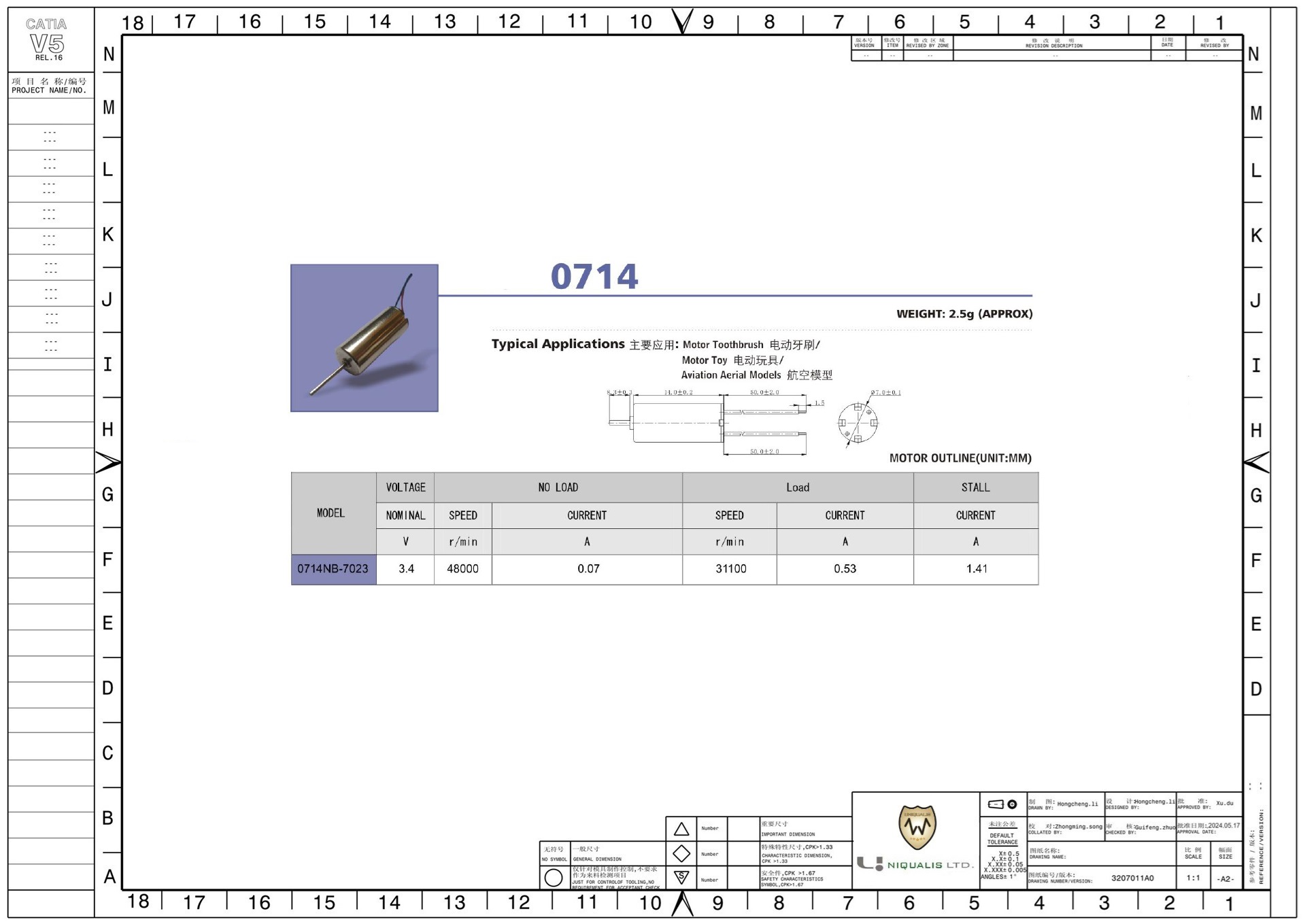

1. Cylindrical Vibration Motor
2. Brushless Vibration Motor
3. Iron Core Vibration Motors
The eccentric rotating mass is inside and well protected as below vibration motors:
4. Brushless Coin Vibration Motor
5. Coin Vibration Motor
6. Encapsulated Vibration Motor

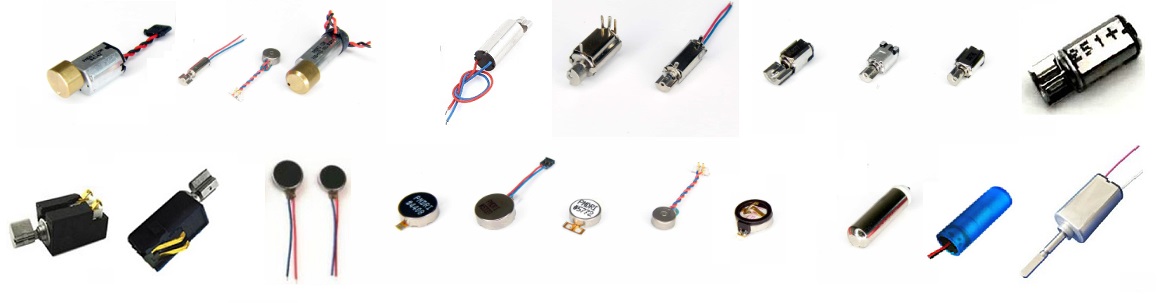

108 stocked motor form factors

We want to help get you developing quickly. So we have many off-the-shelf form factors in a variety of winding configurations available for sample or purchase, which allows for easy integration into applications such as Robotics, Tablets, Smartphones, Gaming Controllers, Smartwatches, Fitness Trackers, Remote Controls, Car Touchscreens, Automotive Seat Vibration Alerts, Massage Therapy, Pain Management, Sensory Stimulation Devices.

Customisable options

Uniqualis vibration motors have different sizes, Our small coin vibration motors can be customized as your requirements, such as custom lead wire, provide various connectors, FPC or bare touch board to meet your needs.The length of the wire can be customized, as well as Encapsulated Vibration Motor.

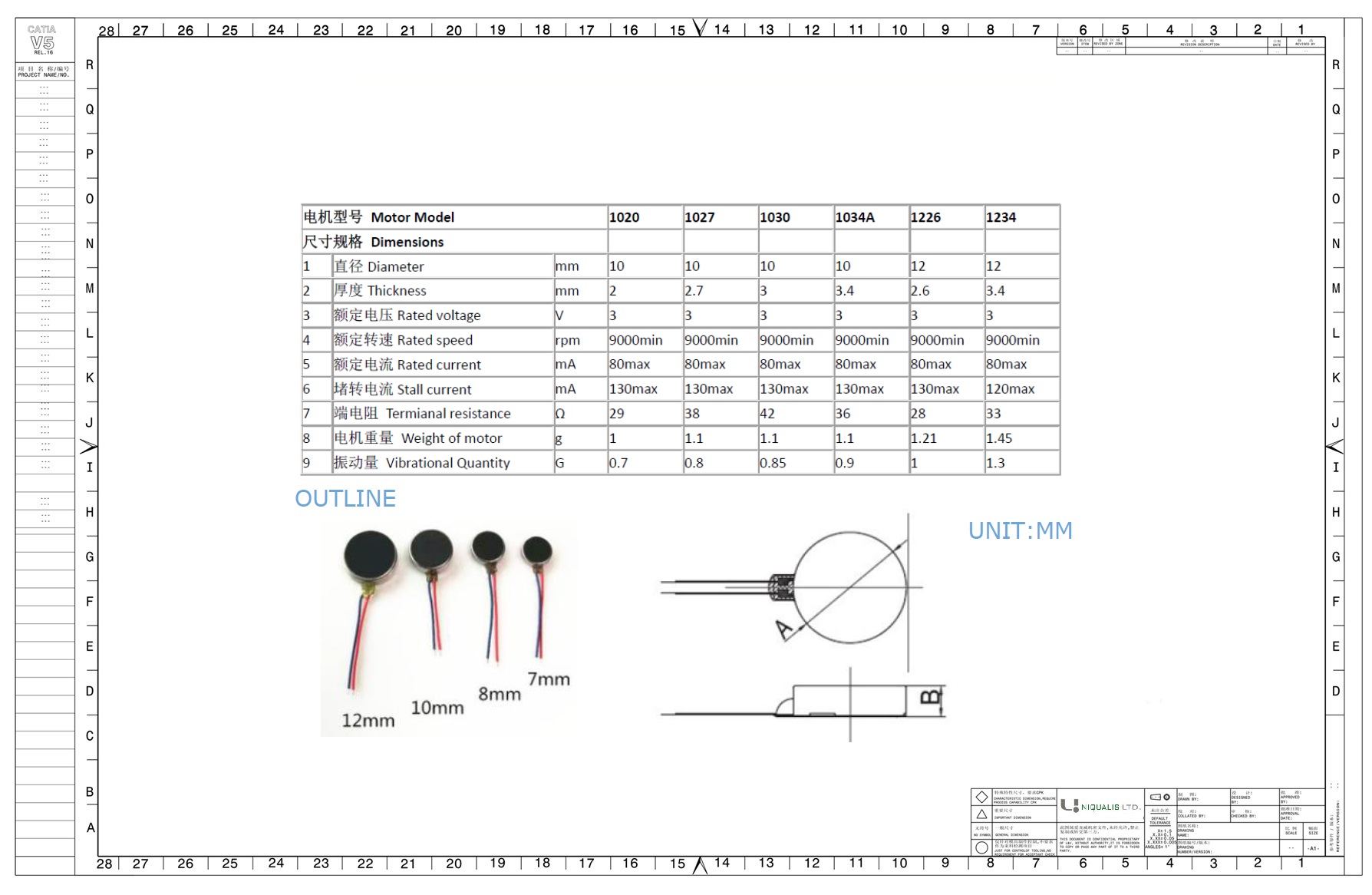

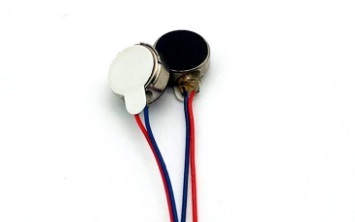

Coin Vibration Motors

8mm diameter coin vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 30/62 ohms
Speed 11000 rpm
Current 70 mA
Starting voltage 1.7 V
Stall current 90 mA
Operating temperature range -20~+70 C

Buy Now More info

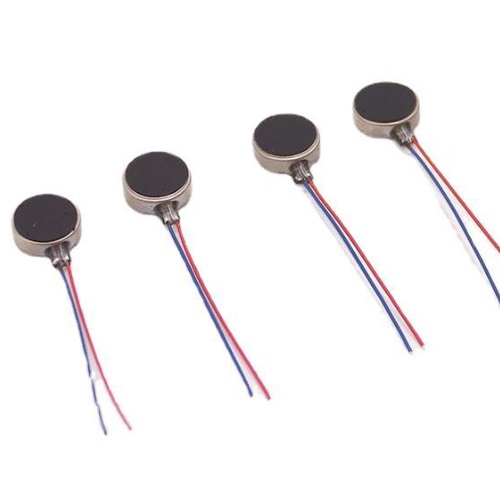

10mm diameter coin vibrator

Available: In Stock Now !
Description :
Voltage 3 V
Terminal resistance 38/71 ohms
Speed 13500 rpm
Current 55 mA
Starting voltage 2.3 V
Stall current 80 mA
Operating temperature range -20~+70 C

Buy Now More info

12mm diameter coin vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 32/59 ohms
Speed 11000 rpm
Current 60 mA
Starting voltage 1.7 V
Stall current 90 mA
Operating temperature range -20～+70 C

Buy Now More info

10mm Brushless Vibration Motor

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 30/60 ohms
Speed 11000 rpm
Current 70 mA
Starting voltage 1.5 V
Stall current 90 mA

Buy Now More info

12mm Brushless Vibration Motor

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 30/60 ohms
Speed 11000 rpm
Current 70 mA
Starting voltage 1.5 V
Stall current 90 mA

Buy Now More info

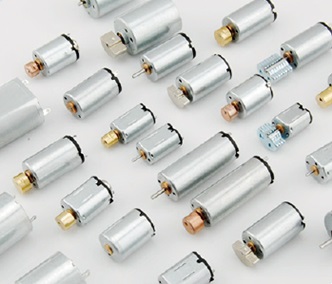

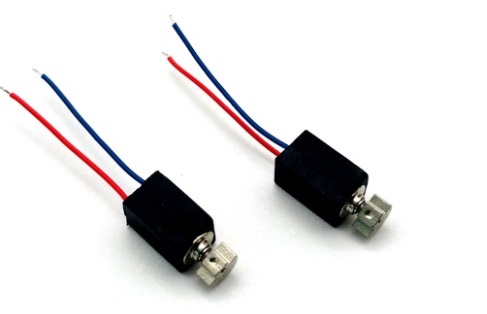

Cylindrical Vibration Motor

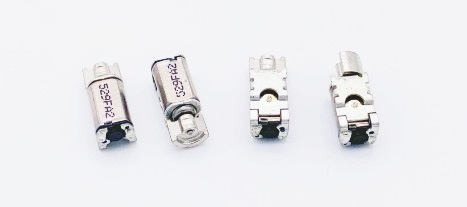

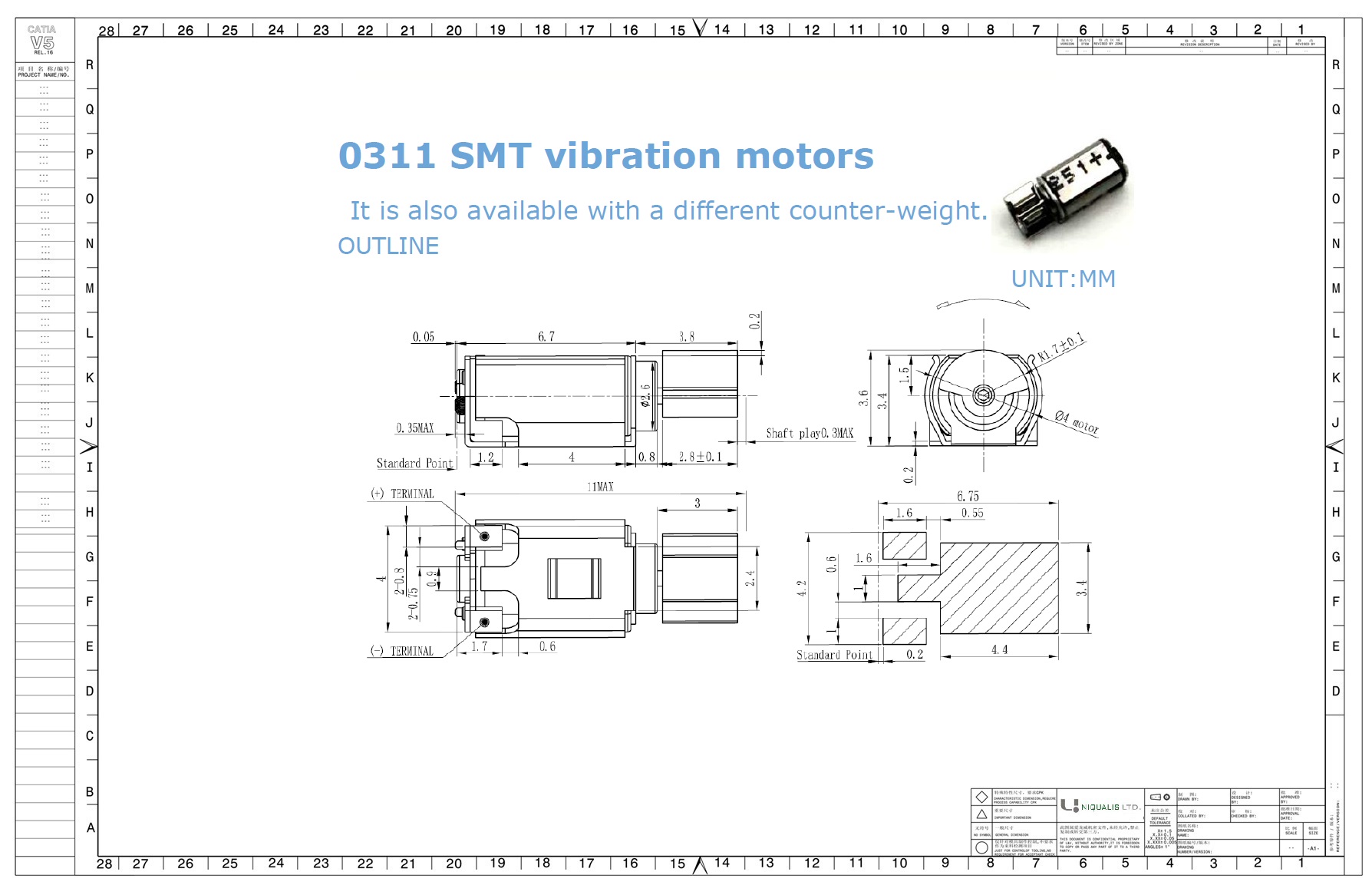

SMT cylinder vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 32 ohms
Speed 12000 rpm
Current 75 mA
Starting voltage 1.4 V
Stall current 95 mA

Buy Now More info

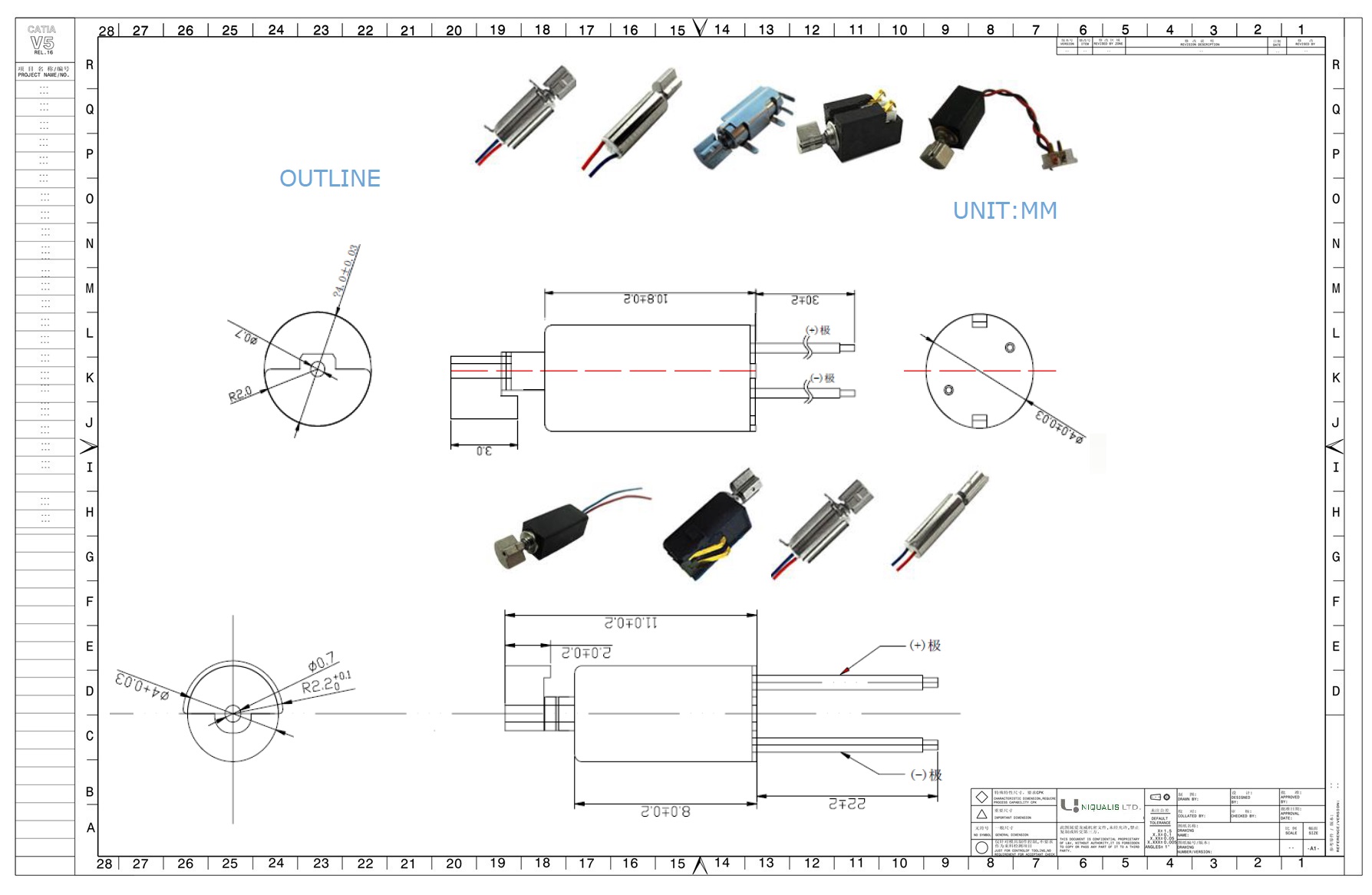

4mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 2.7 V
Terminal resistance 32 ohms
Speed 8500 rpm
Current 70 mA
Starting voltage 1.5 V
Stall current 100 mA

Buy Now More info

4mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 2.7 V
Terminal resistance 32 ohms
Speed 8500 rpm
Current 70 mA
Starting voltage 1.5 V
Stall current 100 mA

Buy Now More info

4mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 2.7 V
Terminal resistance 32 ohms
Speed 8500 rpm
Current 70 mA
Starting voltage 1.5 V
Stall current 100 mA

Buy Now More info

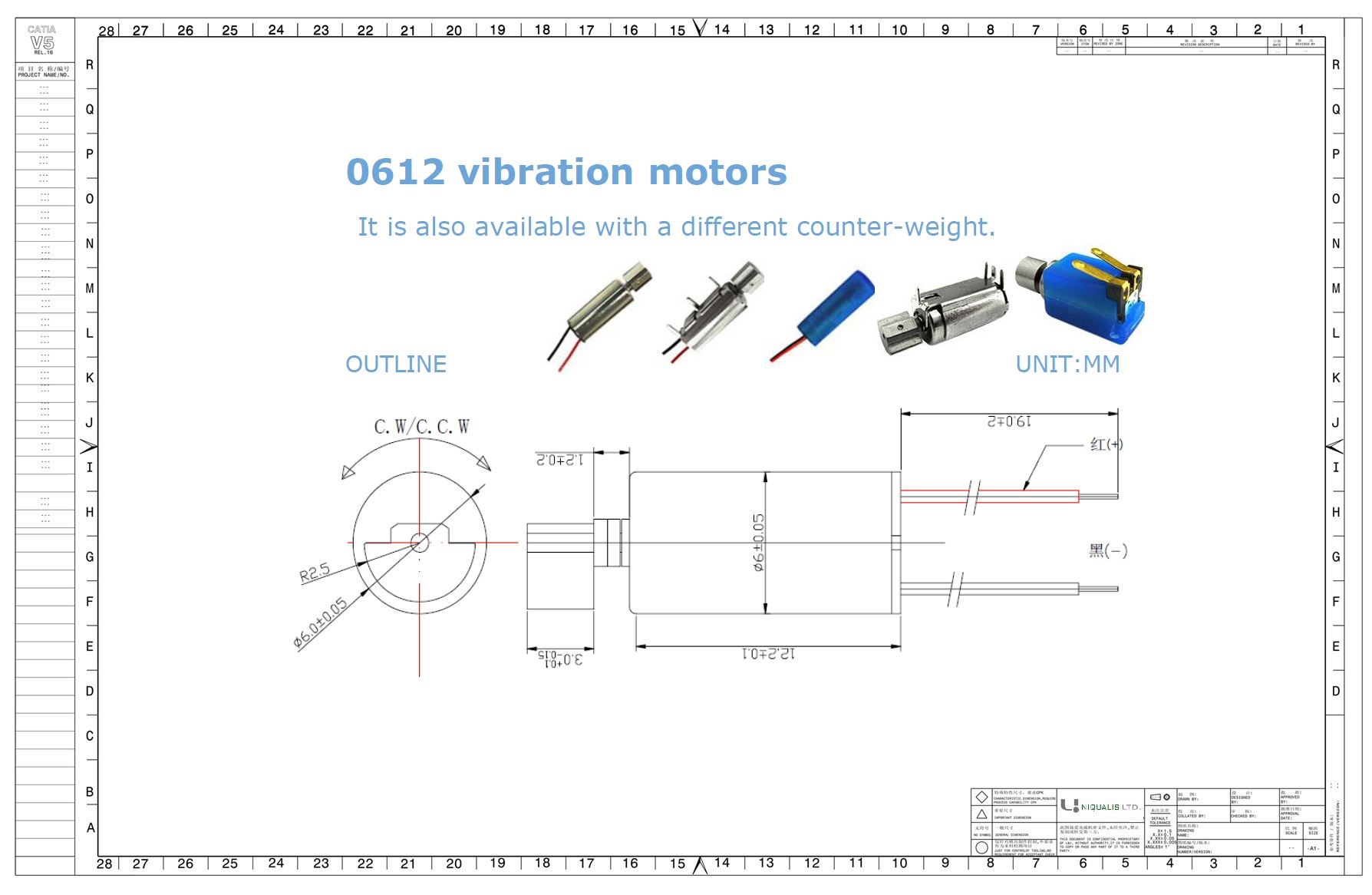

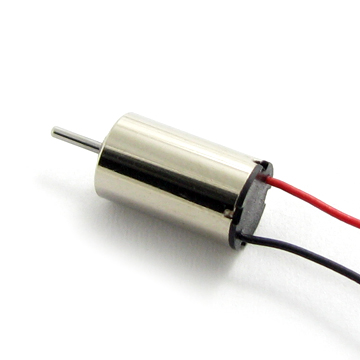

6mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 55 ohms
Speed 11000 rpm
Current 20 mA
Starting voltage 0.8 V
Stall current 120 mA

Buy Now More info

6mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 55 ohms
Speed 11000 rpm
Current 20 mA
Starting voltage 0.8 V
Stall current 120 mA

Buy Now More info

6mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 55 ohms
Speed 11000 rpm
Current 20 mA
Starting voltage 0.8 V
Stall current 120 mA

Buy Now More info

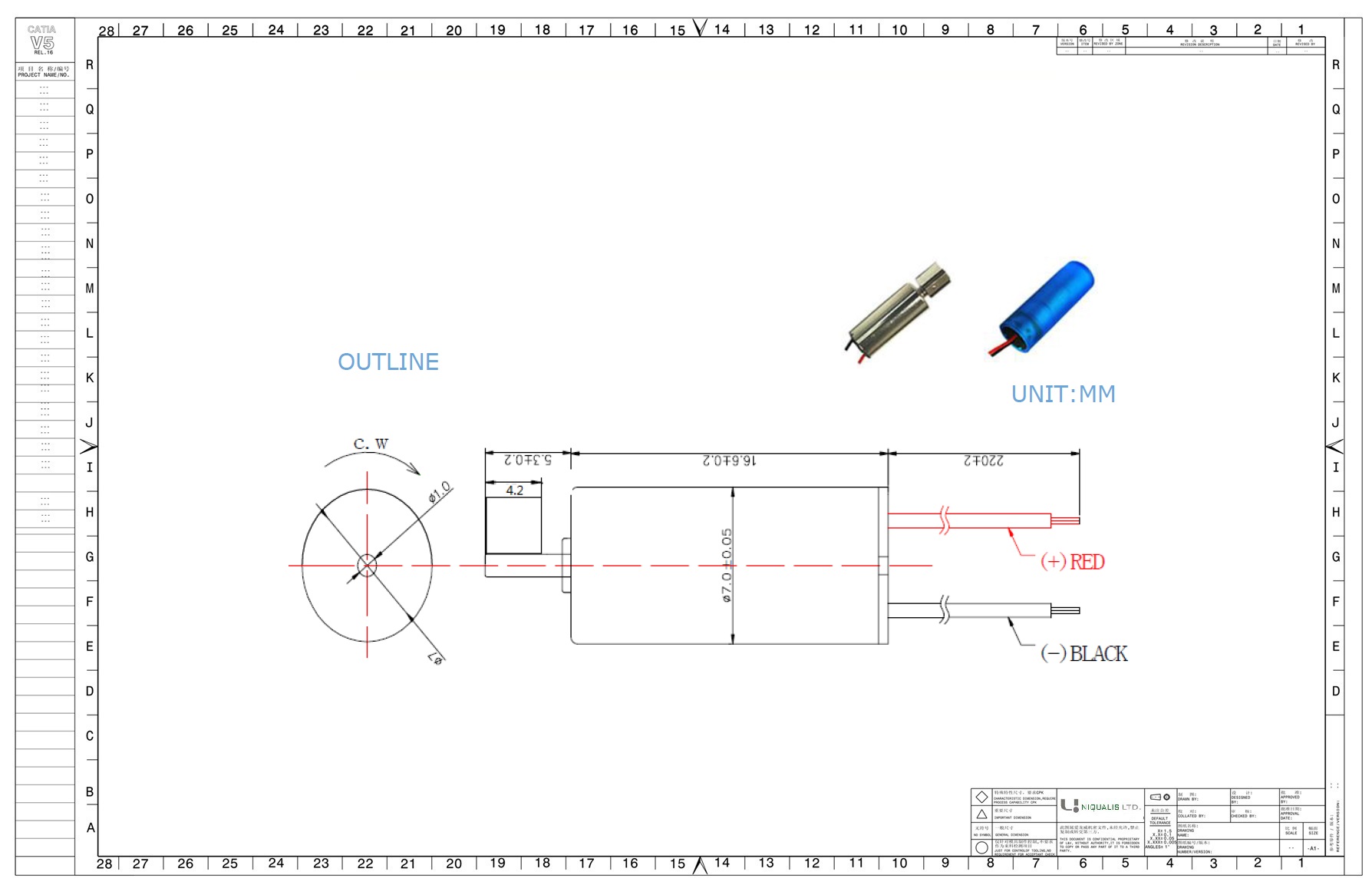

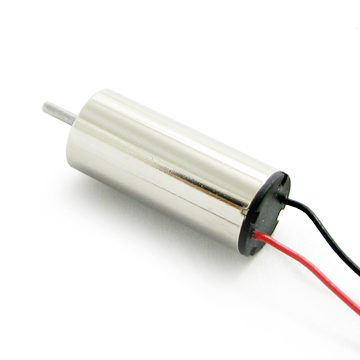

7mm cylinder vibrator

Available: In Stock Now !
Description :
Voltage 3.0 V
Terminal resistance 9.7 ohms
Speed 10500 rpm
Current 110 mA
Starting voltage 0.8 V
Stall current 300 mA

Buy Now More info

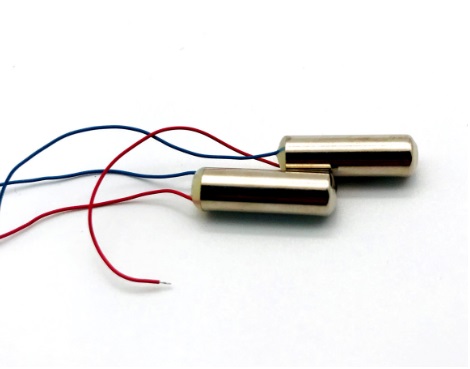

Encapsulated Vibration Motor

Encapsulated Vibrator 4mm

Motor diameter: 4mm

Buy Now More Info

Encapsulated Vibrator 6mm

Motor diameter: 6mm

Buy Now More Info

Encapsulated Vibrator 7mm

Motor diameter: 7mm

Buy Now More Info

High Power Vibration Motor

Small vibration motors

Available: In Stock Now !
Description :
1. Diameter range: 10mm, 15mm and MAX 30mm
2. The amplitude of these small vibration motors depends on the size and speed of the eccentric rotating mass.
3. The small vibration motor is equipped with a stainless steel shaft, oil-immersed bearings and precious metal brushes.

Buy Now More info

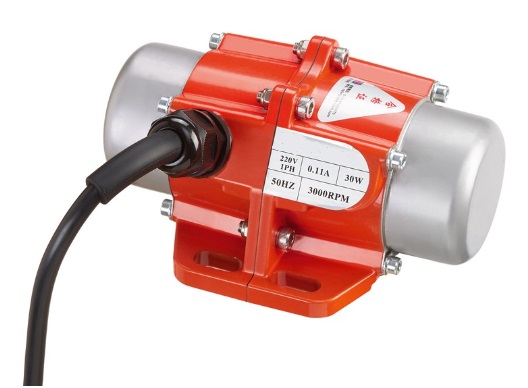

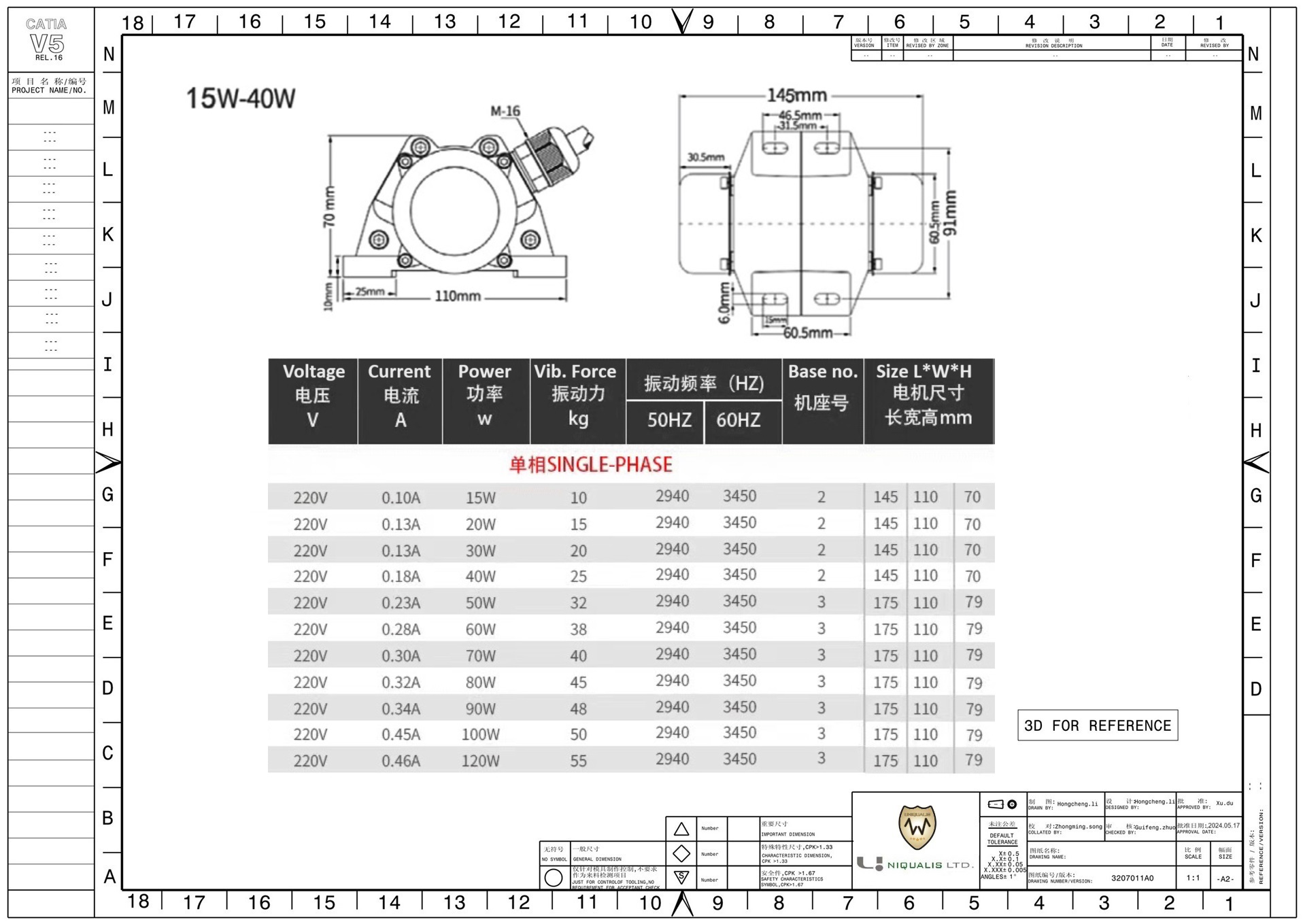

15W-40W industry vibration motors

Available: In Stock Now !
Description :
1. Powerful vibrator motor: single phase 220 V and three phase 380V optional.
2. power: 40 W; current: 0.18 A; vibration force: 25 kg; speed: 3000 rpm.
3. This concrete vibrator motor is made of upgrade material and is protected with an aluminium alloy housing to ensure a long service life..
4. Multi-Purpose Motor High Quality Vibration Motor for Mining, Metallurgy, Coal, Electricity, Construction, Chemistry, etc.

Buy Now More info

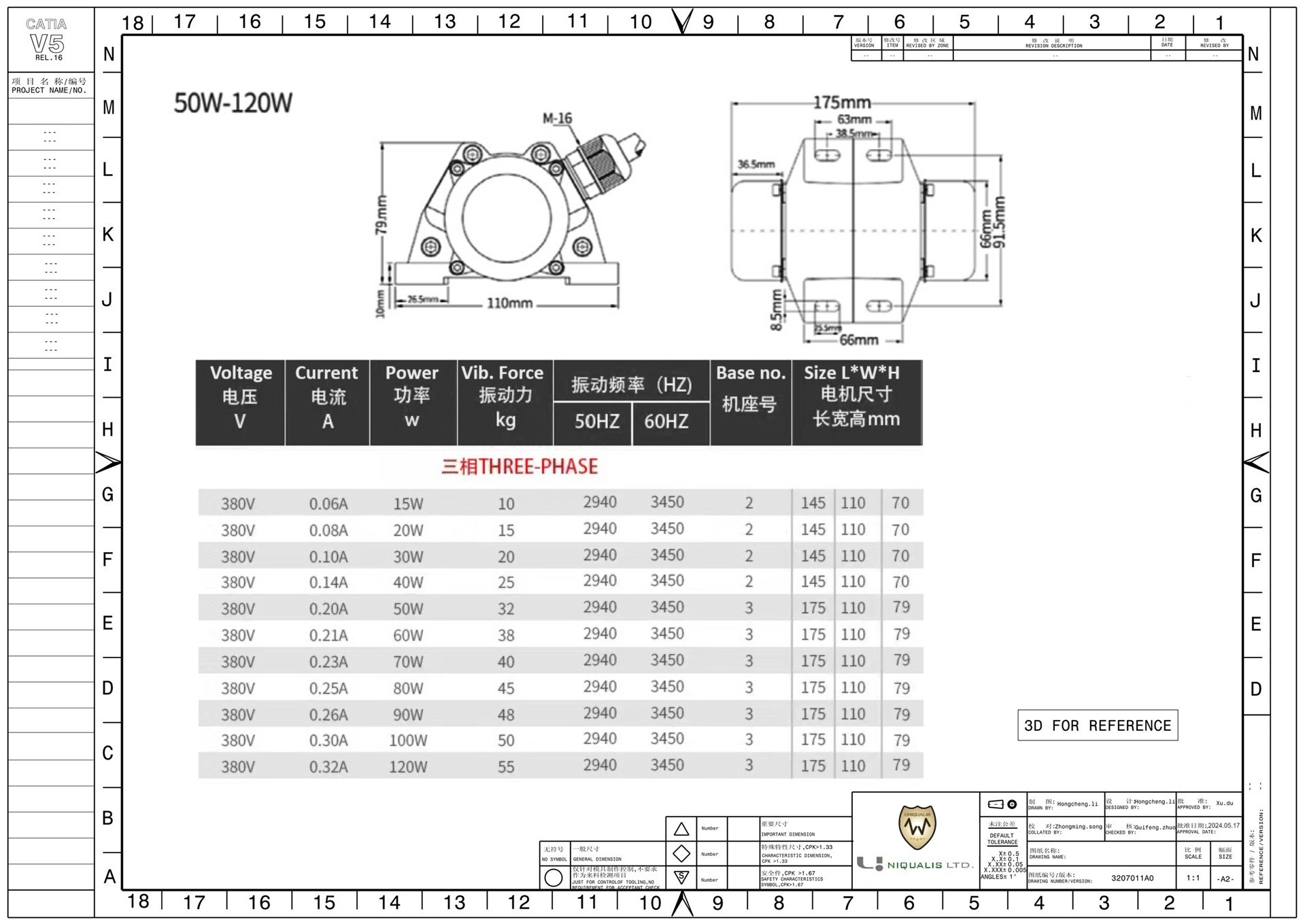

50W-120W industry vibration motors

Available: In Stock Now !
Description :
1. Powerful vibrator motor: single phase 220 V and three phase 380V optional.
2. power: 90 W; vibration force: 48 kg; speed: 3000 rpm.
3. This concrete vibrator motor is made of upgrade material and is protected with an aluminium alloy housing to ensure a long service life..
4. Multi-Purpose Motor High Quality Vibration Motor for Mining, Metallurgy, Coal, Electricity, Construction, Chemistry, etc.

Buy Now More info

WHY CHOOSE UNIQUALIS MOTOR

SINCE 2001

23+ years experience in Gear Motors, BLDC motors and electric axle manufacturing.10+ years experience in international trade and started office in Frankfurt am Main,Germany in 2017.

Flexible Manufacturing

Automatization motors production equipment. Our flexible manufacturing line can accommodate large and small orders for any kind of industries for innovation in motion.

Engineering Excellence

Due to the extensive experience in drive technology, our customers can count on good practical advice in the field of assembly up to complex R&D issues, whether or not combined with business solutions.

OEM&ODM

Adapt precision gear process to ensure low noise and low vibration for 98% OEM&ODM.

Quality Control System and Best Service

From idea, design, testing, technology support, manufacturing to sales, Uniqualis offers products and service in domestic and overseas marketing under IATF 16949:2016 system.

After-Sales Service in Germany

Our after-sales service is jointly managed by our factory in China and our office located near Frankfurt am Main, Germany. For particularly complex issues, our research department engineers will directly assist you to ensure a swift resolution.

Vibration Motor Range

Vibration motor technologies

Small size allows for easy integration into various devices & equipments, minimizing energy consumption. Low noise ensures a quieter experience. Irrespective of the vibration motor technology used, there are some common form factors and design influences (largely around the electrical connection interface) that are commonly used in applications across all industries. Below are some of these that can be used to describe your preferred solution.

- Our Product Lines -

1. Spring pad Brushless Vibration Motor

The brushless DC motor drive power is provided to the driver IC, and the service life of these brushless DC motors is usually more than 10 times longer than that of the brushed coin motor.

Very suitable for use in long-life medical devices or industrial handheld vibration alarm functions. All brushless types can be customized for a wide range of applications.

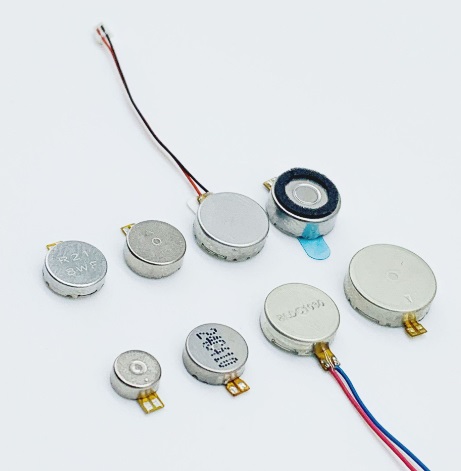

2. Coin and pancake vibration motors

We carry a wide range of ERM and LRA motors in both coin or ‘pancake’ designs. These can be leaded or fitted with pad springs.Coin vibration motor is an eccentric rotating mass vibration actuator, also known as ERM or pager motor. It is a brush type vibration motor used for tactile feedback and vibration alarms.

ERM coin vibration motors have different sizes, Our small coin vibration motors can be customized as your requirements, such as custom lead wire, provide various connectors, FPC or bare touch board to meet your needs.

3. Leaded Vibration Motor

Cylindrical vibration motors are usually called pager motors. Cylindrical vibration motors belong to the ERM (eccentric rotating mass) type. This coreless vibration motor is probably the most common type, and the eccentric rotating mass is visible on the outside and is not protected. The length of the wire can be customized, the following are the most common types of cylindrical vibration motors.

4. SMD reflow vibration motors

We offer a wide range of SMD reflowable vibration motors that are supplied on SMD pick and place reels.

5. Encapsulated Vibration Motor

The encapsulated vibration motor consists of an eccentric rotating mass vibration motor, which is installed in a plastic or metal housing. It adopts a low temperature/pressure plastic overmolding design to prevent liquid intrusion and is waterproof.

CASE STUDIES

Application Areas from Uniqualis Vibration motor

Vibration motors find their way into a surprising number of applications. We’ve covered the main types of use below:

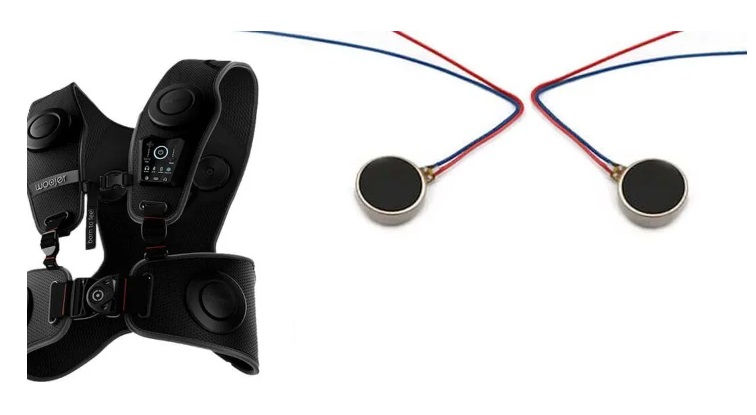

1. Vibration alerting

Vibration alerting is used to interrupt a users attention with a tactile alert. A pager or phone vibrating to indicate an incoming message.

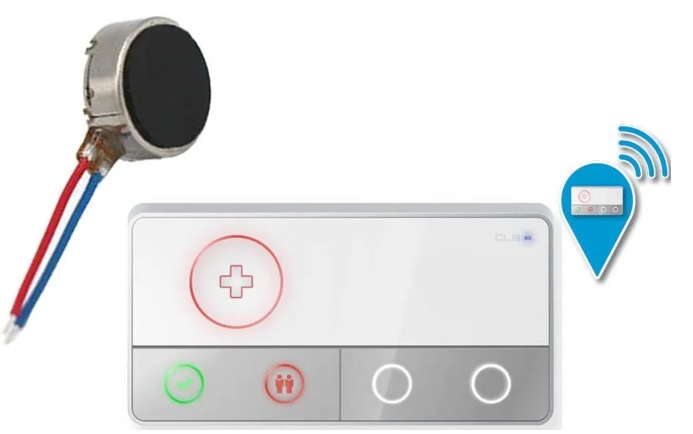

2. Haptics for user interfaces

Uniqualis vibration motors can also be used to add haptics to non-screen user interfaces. These include capacitive touch-surfaces which do not have a screen (e.g. capacitive switch panels), and other user-interfaces such as machine control sticks / levers. Information can be fed instinctively back to the machine operator by vibration motors embedded into the control columns / handles. This is a more refined version of Vibration Alerting, where more information than just an alert needs to be conveyed to the user.

Many items can be turned into haptic user interfaces, for example, shoes that vibrate directions to one foot at a crossroads, or steering wheels that vibrate as part of a lane departure warning system.

3. Vibration for analysis instruments

A more unusual use of our vibration motors is within instrumentation and material analysis markets. Some seismometers and vibration monitoring sensors integrate our vibration motors to operate as part of their self-testing algorithms.

This reduces the chances of false-negative readings within the instruments. Also, some instruments deliberately send vibration through a material under test, measuring how the vibration signals propagate through the medium. We can customise our range of vibration motors to precisely target a specific frequency range or amplitude.

4. Vibration for healthcare

An obvious use of vibration motors is in the application of ‘good vibrations’ for adult toys and consumer massager applications.

However, vibration motors are also used in the application of pain relief to sore joints and the trigger-point release of fatigued and overtrained muscles.

For healthcare applications, the precise application of frequency and amplitude is often required. At Uniqualis, we can tailor the performance characteristics of our motors to deliver an exact vibration, as well as tuning vibration systems to take advantage of or avoid completely system resonant frequencies.

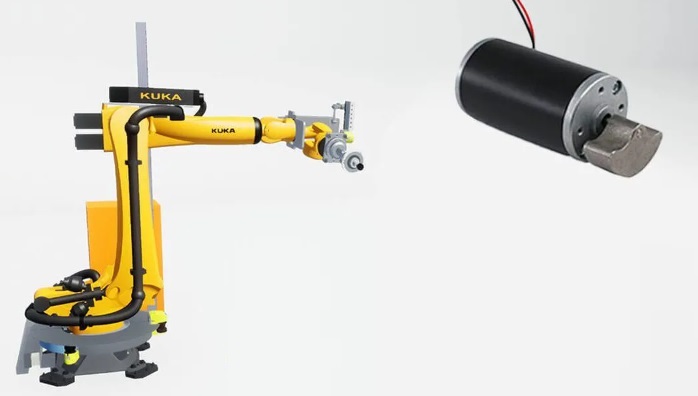

5. Vibration for industrial use

Vibration is used in industrial processes, vending machines and lab equipment to aid the movement of materials through a process.

For example, ice-cubes through the chute of a crusher, wires through the hopper of a wire crimping machine, or the mixing / emulsification of fluids and powders.We offer a wide range of motors for this application, including super-long-life brushless vibration motors for constant operation.
