Long Lifecycle Brushless Water Pump

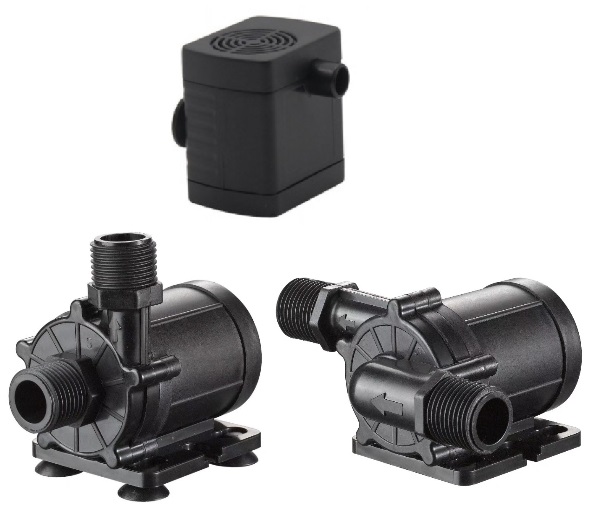

Brushless Water pump and Air pump
Brushless DC Centrifugal Pump Technology by Uniqualis
Our tailored solutions
We understand that every application has unique needs and challenges.
- Water Heater Mattress Pump
- Water Heater Pump
- Hot Water Dispenser Pump
- Smart Toilet Water Pump
- Food&Beverage Pump
- Swimming Pool Robot Pump
- EV Charging Cooling Pump
- Home Energy Storage Pump
- Server & Electronics Liquid Cooling Pump
Designed to protect the core components within various types of equipment, Uniqualis circulation water pumps adhere to stringent requirements such as 24-hour continuous operation, exceptional reliability, long-lasting durability, quiet performance, minimal maintenance, compact size, perfect adaptability to systems, and customizability.
Creative Innovation Circulation Pump Technology
Uniqualis is a innovation manufacuter in the area of brushless DC Centrifugal pump with the advantages of high quality, good batch consistency, ultra-quiet, small size, high efficiency, low power consumption and long life. We win when our customers win.
By Application
The pump used in the cooling circulation system above is typically known as a "Coolant Circulation Pump". Conversely, when used in a heating system, it's often called a "Heating Circulation Pump".
The target audiences for these two pump types differ significantly. Coolant Circulation Pumps are primarily aimed at manufacturers producing equipment, whereas Heating Circulation Pumps are geared towards fulfilling the domestic needs of end consumers.
By Mechanism
While you can use various types of water pumps for circulation, each has unique features. Small electric DC centrifugal pumps are increasingly favored for their durability, compact design, energy efficiency, low noise output, etc.

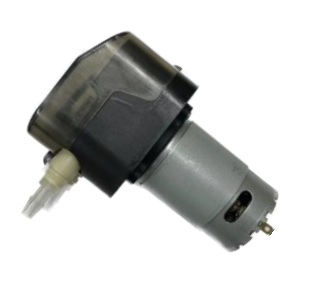

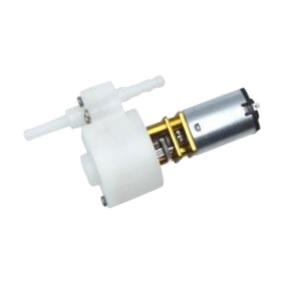

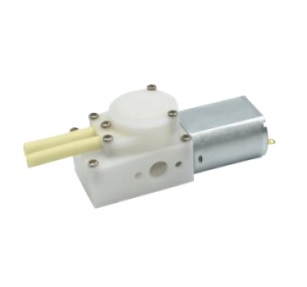

Some clients choose diaphragm pumps as their circulation solution, notable for their high-pressure capabilities. However, they tend to have a smaller flow rate and shorter lifespan than centrifugal pumps.
Choosing the right circulation pump should be tailored to your equipment's specific requirements. The next section offers further guidance.
| Feature/Attribute | AC Pumps | Common DC Pumps | Diaphragm Pumps | Brushless DC Pumps |
|---|---|---|---|---|
| Power Source | Alternating current | Direct current | Direct current | Direct current |
| Efficiency | Low | Medium | Medium | High |
| Noise Level | Moderate to High | Moderate | High | Low |
| Life Span | Moderate | Moderate | Shorter | Long |
| Size/Compactness | Large | Compact | Varies | Very Compact |
| Flow Rate | High | Moderate | Low | Moderate to High |
| Pressure Capability | Low | Moderate | High | Moderate to High |
| Maintenance Needs | Regular | Regular | Frequent | Less Frequent |
| Cost | Moderate | Low to Moderate | Varies | Higher Initial Cost |
| Application Suitability | General Purpose | General Purpose | High Pressure Tasks | Specialized Tasks |
| Durability | Good | Moderate | Moderate | Excellent |
| Energy Consumption | Moderate to High | Moderate | Varies | Low |
| Compatibility with Control Systems | N/A | Good | Varies | Excellent |
| Built-in Electronic Controls | No | Sometimes | Sometimes | Yes |
| Variable Speed Capabilities | No | Yes | Limited | Yes |
| Self-Protection | No | Limited | Limited | Yes |
- Our Circulation Pump Guide -
What Are the Common Faults of 12V 24V DC Water Pump and How to Repair?
12V 24V DC water pumps are essential components in various applications, from automotive systems to water circulation in industrial equipment. However, like all mechanical devices, they can encounter issues that affect their performance over time. To avoid operational disruptions and potential economic losses, it's essential for operators to become adept at diagnosing and addressing common pump problems. Here's a comprehensive guide to understanding common problems and how to address them:
No Water Flow From the Outlet:
Causes: Insufficient water in the pump chamber, leaks in the suction pipe or pump head, low speed leading to excessive mechanical seal leakage.
Solutions: Fill the pump chamber with water, fix air leaks, inspect and repair pipe connections, increase voltage to raise speed, and replace the mechanical seal.
Low Water Flow From the Outlet:
Causes: Blockages in the impeller flow channel or suction pipe, severe impeller wear, insufficient power resulting in low speed.
Solutions: Remove obstructions, replace the impeller, and adjust the speed to the rated level.
Pump Overheating:
Causes: Blocked inlet or outlet, insufficient cooling, or motor issues.
Solutions: Clear any obstructions, improve cooling, or check and replace faulty components.
Excessive Noise and Vibration:
Cause: Unstable installation support or worn 12v dc water pump bearings, poor rotor dynamic balance, eccentric bearing.
Solutions: Adjust support feet, replace bearings, and correct alignment.
Liquid Leakage:
Causes: Loose nut connecting the mini water pump head and body, damaged sealing ring leading to mechanical seal damage.
Solution: Tighten the nut and replace the mechanical seal.
Pump Fails to Start:
Causes: Overly tight packing or debris jamming the impeller and mini water pump body, debris blocking the pump shaft or bearing, severely bent pump shaft.
Solutions: Disassemble the pump body to remove debris or rust, correct or replace the pump shaft.
Interruptions in Water Pumping:
Causes: Blocked inlet or pipeline, loose pump shaft, falling water level at the inlet, suction of the inlet hose.
Solutions: Clear blockages, clean the water diversion pipe, reinforce the impeller, adjust installation position of 12V 24V dc water pump or wait for the water level to rise.
Insufficient Water Flow After Startup:
Causes: Low power machine speed leading to slow 12v warter pump rotation, inadequate pump head, partially blocked pipeline or impeller, or impeller damage, minor water outlet pipe leakage.
Solutions: Restore the rated speed, seal any leaks, remove blockages, replace the impeller, or address minor leaks.
Gradual Decrease in Water Flow:
Cause: Accumulation of debris in the filter screen or bell mouth, lowering of the inlet water level.
Solutions: Remove debris and increase the inlet depth.
Regular maintenance and prompt problem-solving will help ensure the longevity and efficiency of your 12V 24V DC water pump, allowing it to continue serving your needs effectively. By understanding these common faults and knowing how to diagnose and repair them, you can extend the lifespan of your pumps, reduce downtime, and ensure consistent functionality. Remember that safety precautions should always be observed when handling and maintaining water pumps.
How to install a micro dc water Pump?
Installing a micro DC water pump is a straightforward process when you follow the right steps. These compact pumps are essential components in various applications, including cooling systems, medical devices, and more. In this guide, we'll walk you through the process of correctly installing a micro DC water pump.
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have all the necessary tools and materials. You'll typically need:
Micro DC water pump
Mounting brackets or hardware
Hoses or tubing
Hose clamps
Electrical connectors
Screwdriver or wrench
Voltage source (battery or power supply)
Step 2: Choose the Installation Location
Select a suitable location for your micro DC water pump. Consider factors like accessibility, proximity to the fluid source, and ventilation.
Ensure the chosen location allows for proper pump mounting and connection to the fluid system.
Step 3: Mount the Pump
Use the provided mounting brackets or hardware to secure the pump in its designated location. Ensure the pump is securely fastened to prevent vibration during operation.
Step 4: Connect the Inlet and Outlet
Attach hoses or tubing to the pump's inlet and outlet ports. Use appropriate fittings and hose clamps to create a secure and leak-free connection. Double-check that the connections are tight and properly sealed.
Step 5: Electrical Wiring
Follow the manufacturer's wiring instructions to connect the pump to the appropriate power source. Ensure you use the correct voltage and observe polarity. Use suitable wire gauges and connectors to minimize voltage drops and ensure efficient operation.
Step 6: Prime the Pump
Before starting the pump, prime it by filling the inlet and outlet lines with the fluid. This prevents dry running, which can damage the pump.
Allow the pump to fill completely with fluid to ensure proper priming.
Step 7: Ventilation and Monitoring
Ensure proper ventilation in the installation area to allow any trapped air to escape from the system. Monitor the system during operation to check for any air pockets that could affect pump performance.
Step 8: Temperature Control
Keep an eye on the pump's operating temperature. Overheating can lead to reduced efficiency and potential damage. Implement cooling solutions like heat sinks or fans if needed.
Step 9: Safety Measures
Follow safety guidelines and regulations during installation and operation to protect personnel and equipment. Consider implementing emergency shut-off mechanisms in case of unexpected issues.
Step 10: Testing and Maintenance
After installation, thoroughly test the pump to verify its performance. Monitor for any potential issues.
Establish a maintenance schedule to ensure the pump continues to operate efficiently.
In conclusion, the correct installation of a micro 12v DC water pump is crucial for its efficient and reliable operation. By following these steps and the manufacturer's guidelines, you can confidently install your pump and enjoy its benefits in various applications. Proper installation and maintenance will help maximize the pump's lifespan and performance.
7 matters needing attention in the use of brushless DC mini water pumps

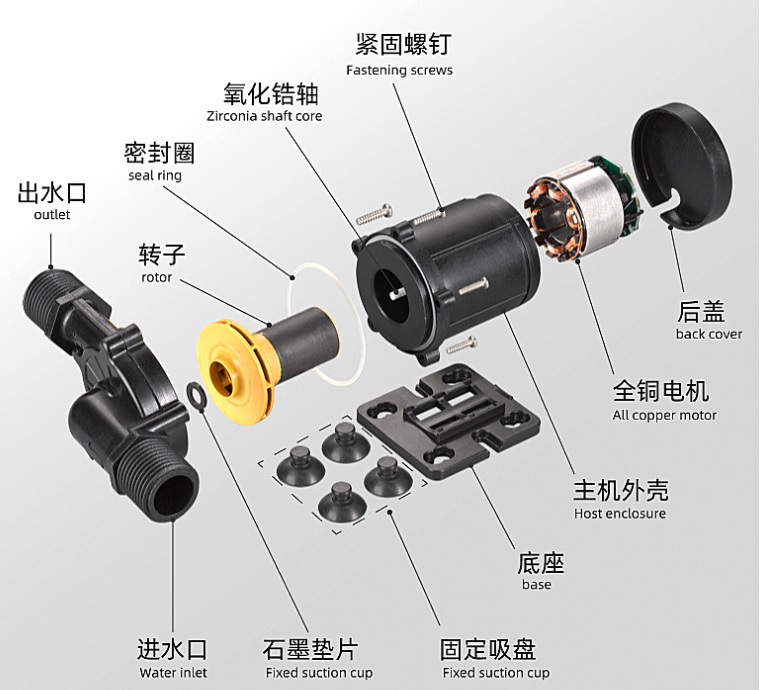

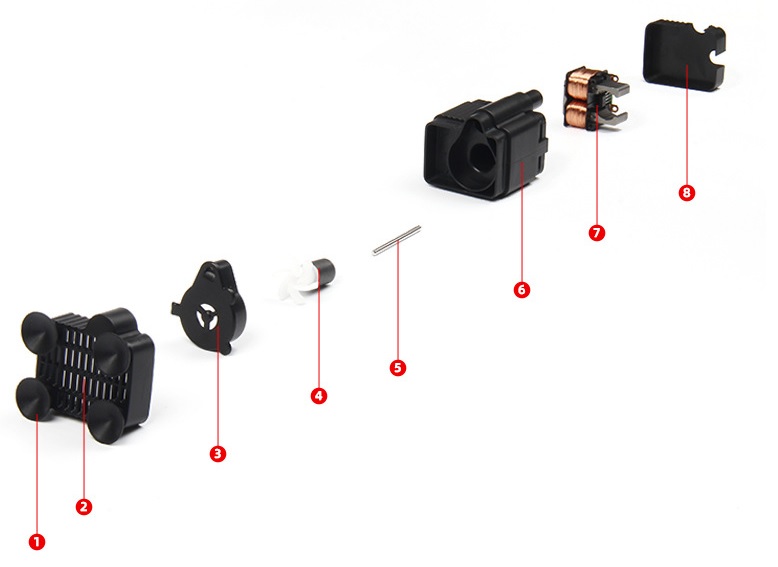

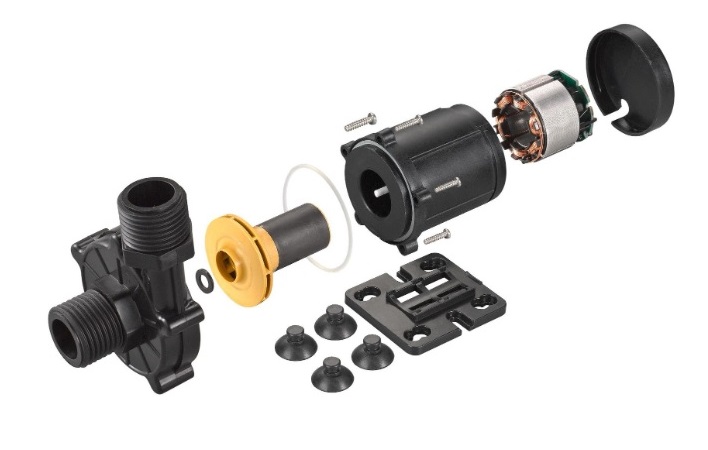

The brushless DC pump uses a DC power supply to drive the brushless motor to run. When the brushless motor runs, it drives the impeller to run, so that the liquid in the pump generates pressure and the pressure gradually increases to achieve the function of transferring liquid.
Due to its low price, small size, high efficiency, long life, safety, and quietness, brushless dc mini water pumps are widely used as functional parts for fluid delivery in various equipment, such as water dispensers, coffee machines, electric vehicles, ,EV charger,solar water circulation system, computer water circulation heat dissipation, refrigeration, medical equipment, cooling system, bathroom products and other fields.
When using a DC mini water pump, you need to pay special attention to the following 7 major matters
1. Power supply correctly
Use a 12V or 24V DC transformer to supply power, and connect the positive and negative poles of the pump power line correctly. The red power wire of the water pump is connected to the positive pole, and the black wire is connected to the negative pole. The positive and negative poles cannot be reversed, otherwise the pump will be short-circuited and burned.
2. Operate the pump within the allowed voltage range
The water pump cannot be used with excess voltage, and the brushless DC pump should be used within the specified operating voltage range. If the water pump has an over-voltage protection function, when the voltage exceeds the range, the water pump will automatically stop and resume work after returning to the normal voltage range.
3.Strictly forbidden use non-conductive liquid with magnetic particles or impurities.
Ferromagnetic impurities and particles enter the magnetic drive and bearings, which will be adsorbed on the magnet rotor and cause blockage. Impurities and particles enter the pump body and damage the pump. Filtration measures should be taken as far as possible. When transporting media containing solid particles, it should be filtered at the water inlet of the brushless DC pump to prevent impurities from entering the pump and blocking it. Liquids with impurities or magnetically conductive particles are strictly prohibited. Flush in time after conveying the medium that is easy to crystallize or settle (fill the pump chamber with clean water after stopping the pump, and drain it after running for 1 minute), so as to protect the service life of the sliding bearing.
4. Operated at the specified temperature
The water pump should be operated at the specified temperature, and the temperature of the medium is strictly prohibited to exceed the standard, which will easily lead to demagnetization of the magnet and degradation of the performance of the control circuit. A platinum resistance temperature sensor can be installed on the outer surface of the isolation sleeve of the magnetic pump to detect the temperature rise in the ring gap area, so as to alarm or stop when the temperature exceeds the limit.
5. Strictly forbidden for the water pump to dry-running
The brushless DC mini centrifugal pump is strictly prohibited from dry-running, because there is no medium lubrication during running, and the rotor will rotate at a high speed, causing its temperature to rise to 200-300 degrees, which is easy to wear the rotor and cause the pump to be stuck. Therefore, you can customize dry running protection to protect the pump motor if there is a risk of running dry for prolonged periods of time.
6. The minimum pipe diameter is not smaller than the inlet and outlet
Ensure that the minimum pipe diameter in the pipeline is not smaller than the inner diameter of the water inlet and outlet. If it is less than that, the pressure of the water pump cannot be released normally, so that the rotor of the water pump rotates at a high speed, and the noise is large. On the one hand, it will also reduce the life of the water pump.
7. Installed below the liquid level
The brushless DC water pump is a centrifugal pump, which cannot automatically exhaust air or self-priming, and must be submerged or installed below the liquid level when in use (the liquid can flow in automatically when the pump is not working).
