Hybrid Stepper Motors supplied at Uniqualis

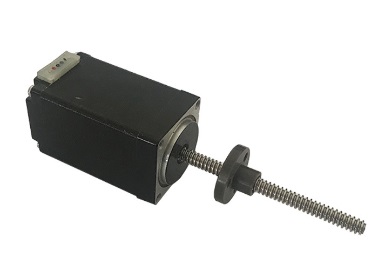

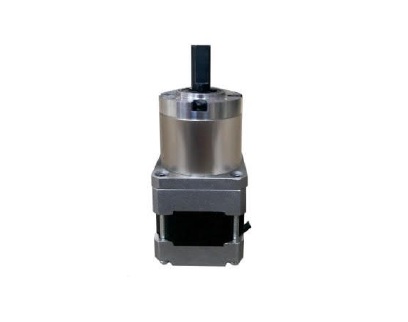

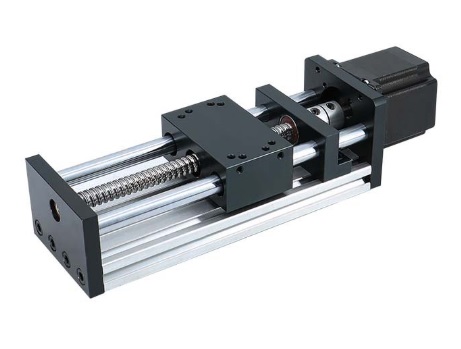

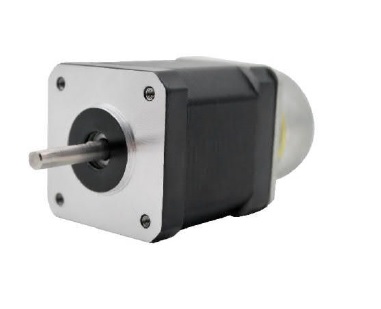

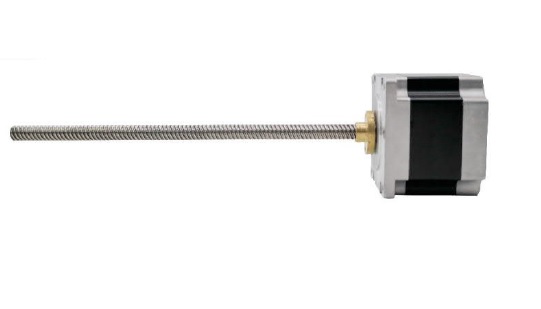

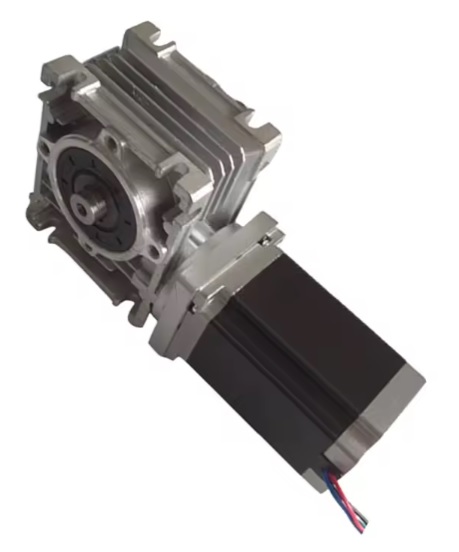

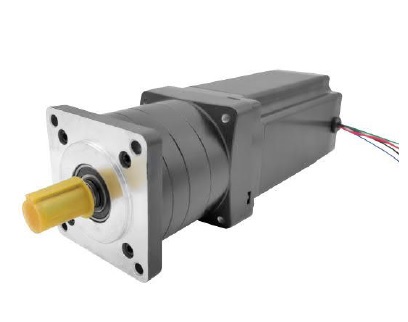

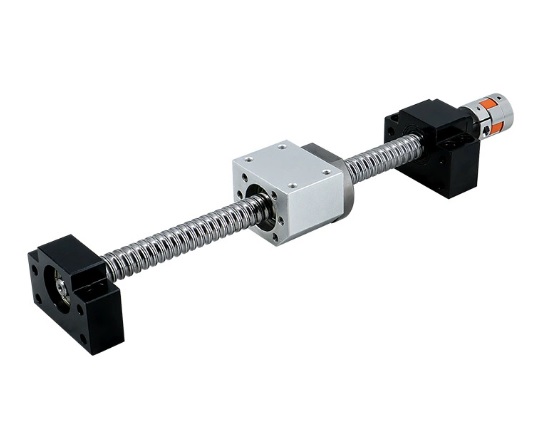

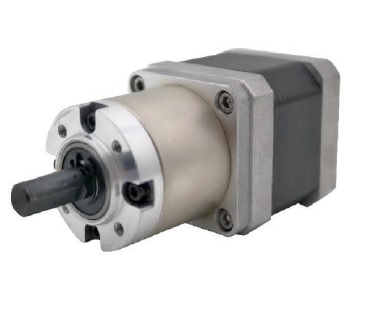

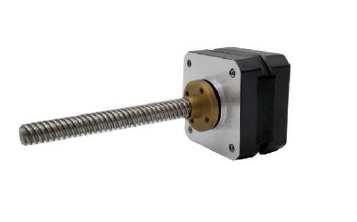

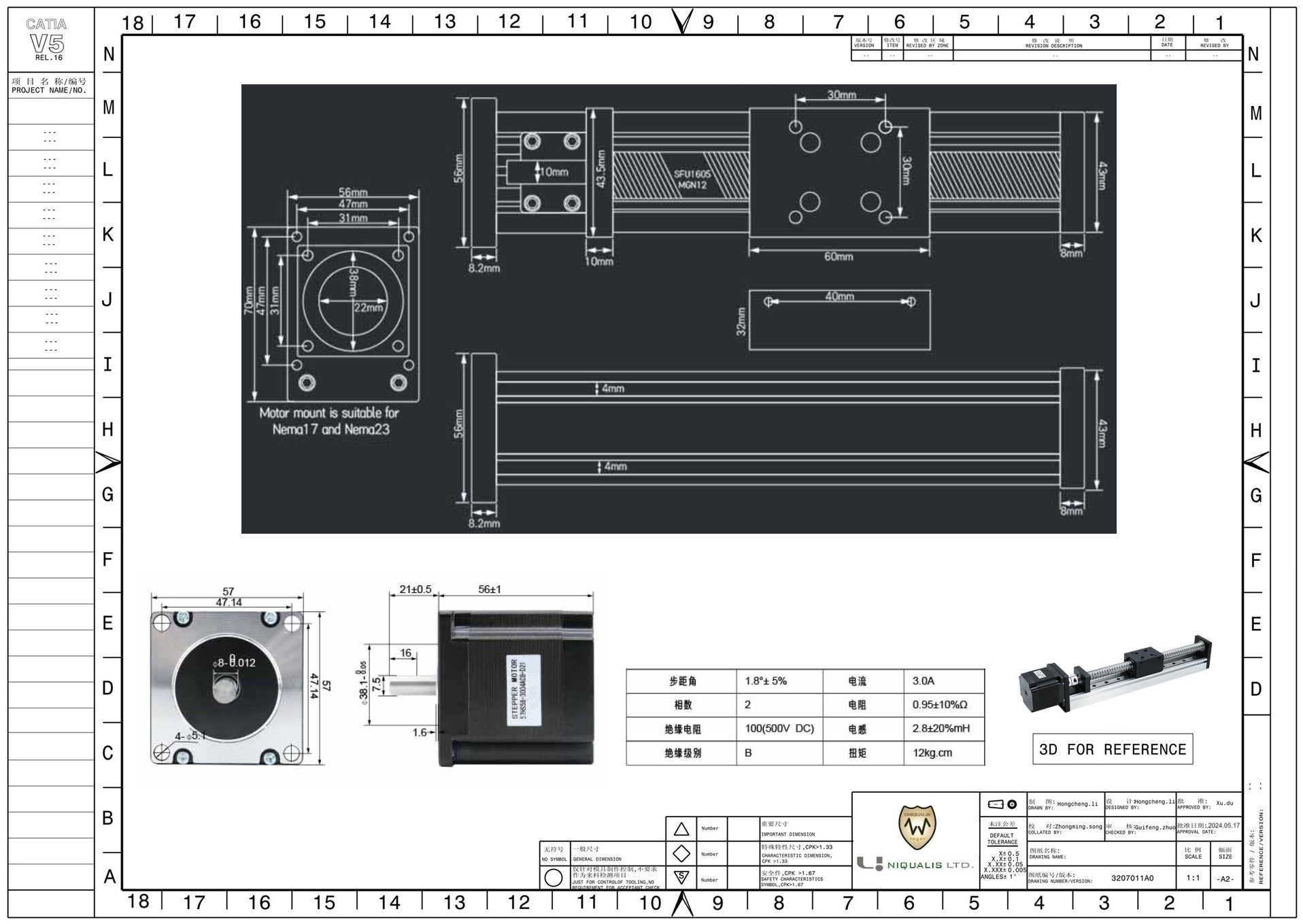

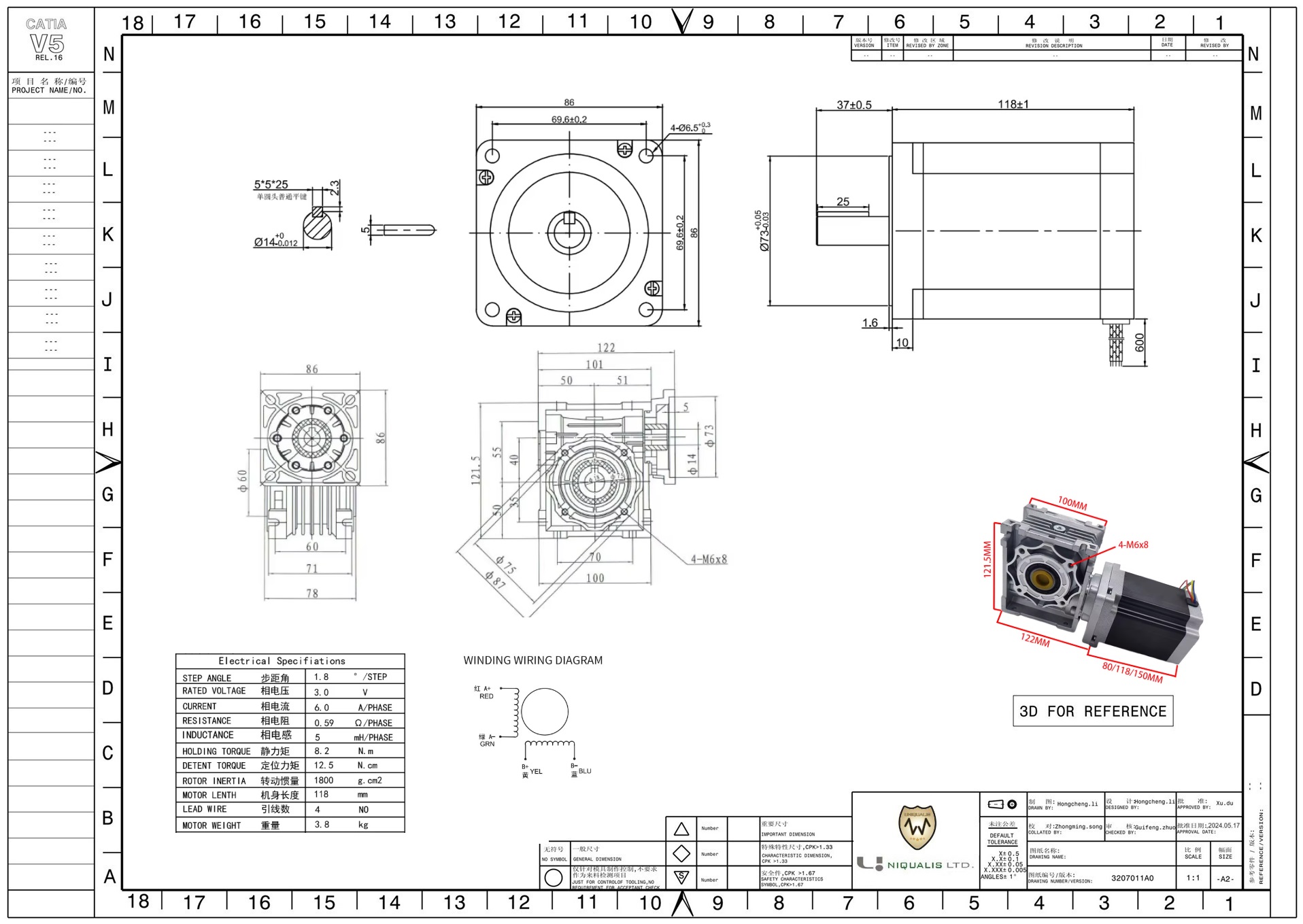

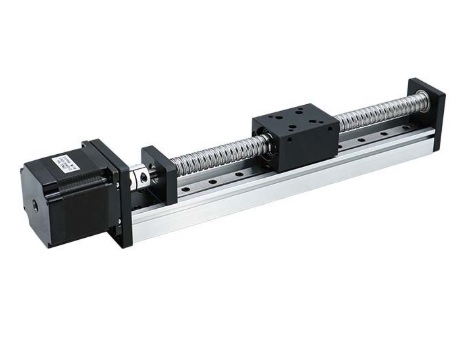

With Gearbox,Brakes,Linear motor
Hybrid Stepper Motors Technology by Uniqualis
Our tailored solutions
We understand that every application has unique needs and challenges.
Uniqualis Motor designs and manufactures stepper motors, offering a broad selection of frame sizes, step angles, and options. Start prototyping your next product with our configurable off-the-shelf motors or collaborate with our Germany-based engineering team for a tailored solution that meets your specific requirements.
Hybrid Stepper Motors
3D printing technology, CCTV Cameras
3D printer-3D printing technology has changed our lives, and there is a wide range of market demands in the civil and industrial industries.
Hybrid 20mm - 2 phases 1.8 Degree
Available: In Stock Now !
Description : NEMA 8H
Length (L) (mm) 33 - 42
Current/Phase (A) 0,6 - 0,8
Holding Torque (Nm) 0,0176 - 0,03
Step Angle 1,8
Hybrid 28mm - 2 phases 1. 8 Degree
Available: In Stock Now !
Description : NEMA 11H
Length (L) (mm) 32 - 51
Current/Phase (A) 0,67 - 0,95
Holding Torque (Nm) 0,043 - 0,12
Step Angle 1,8

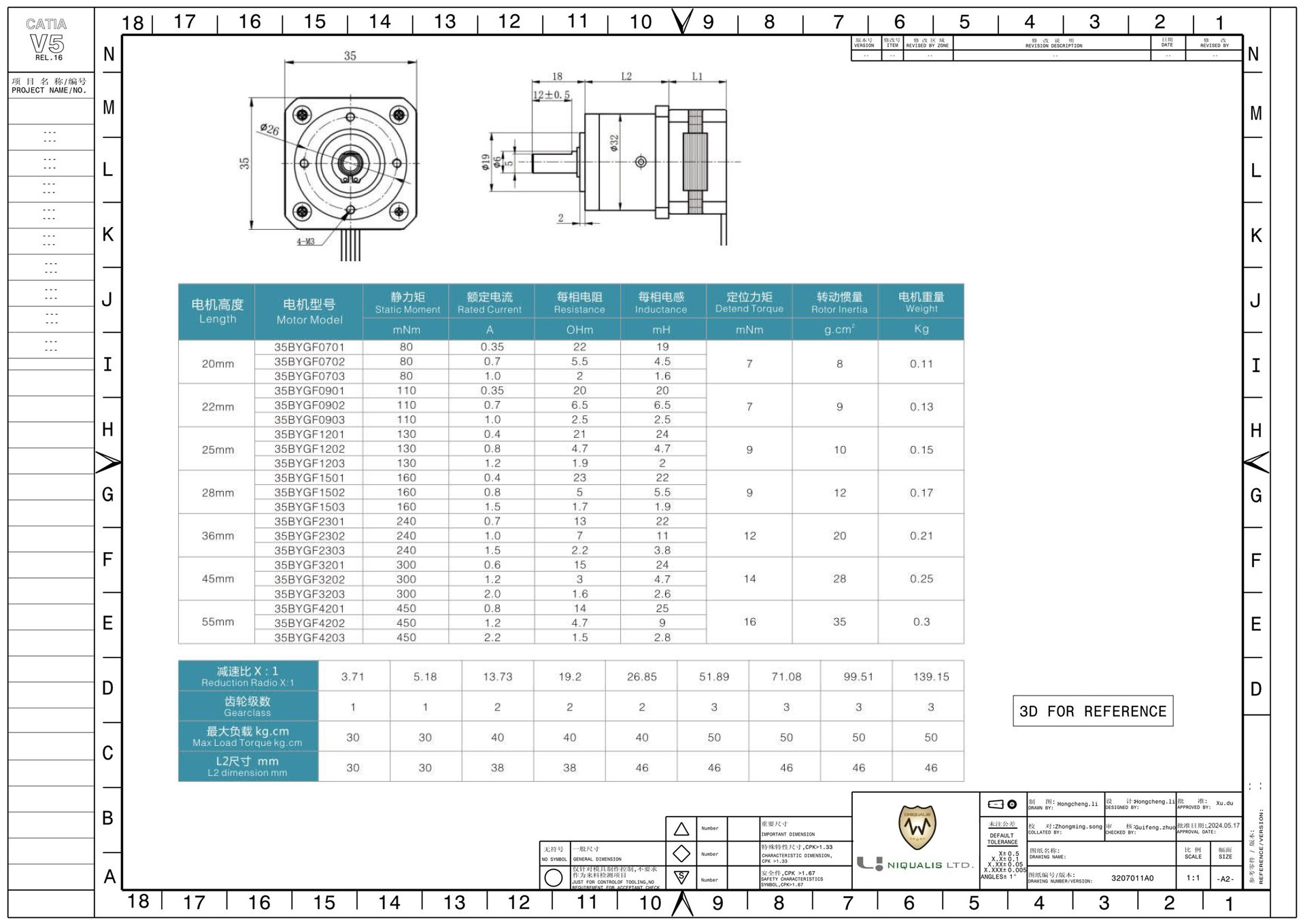

Hybrid 35mm - 2 phases 1. 8 Degree
Available: In Stock Now !
Description : NEMA 14H
Length (L) (mm) 26 - 36
Current/Phase (A) 0,28 - 1
Holding Torque (Nm) 0,07 - 0,14
Step Angle 1,8
Hybrid 39mm - 2 phases 1. 8 Degree
Available: In Stock Now !
Description : NEMA 14H
Length (L) (mm) 26 - 36
Current/Phase (A) 0,28 - 1
Holding Torque (Nm) 0,07 - 0,14
Step Angle 1,8

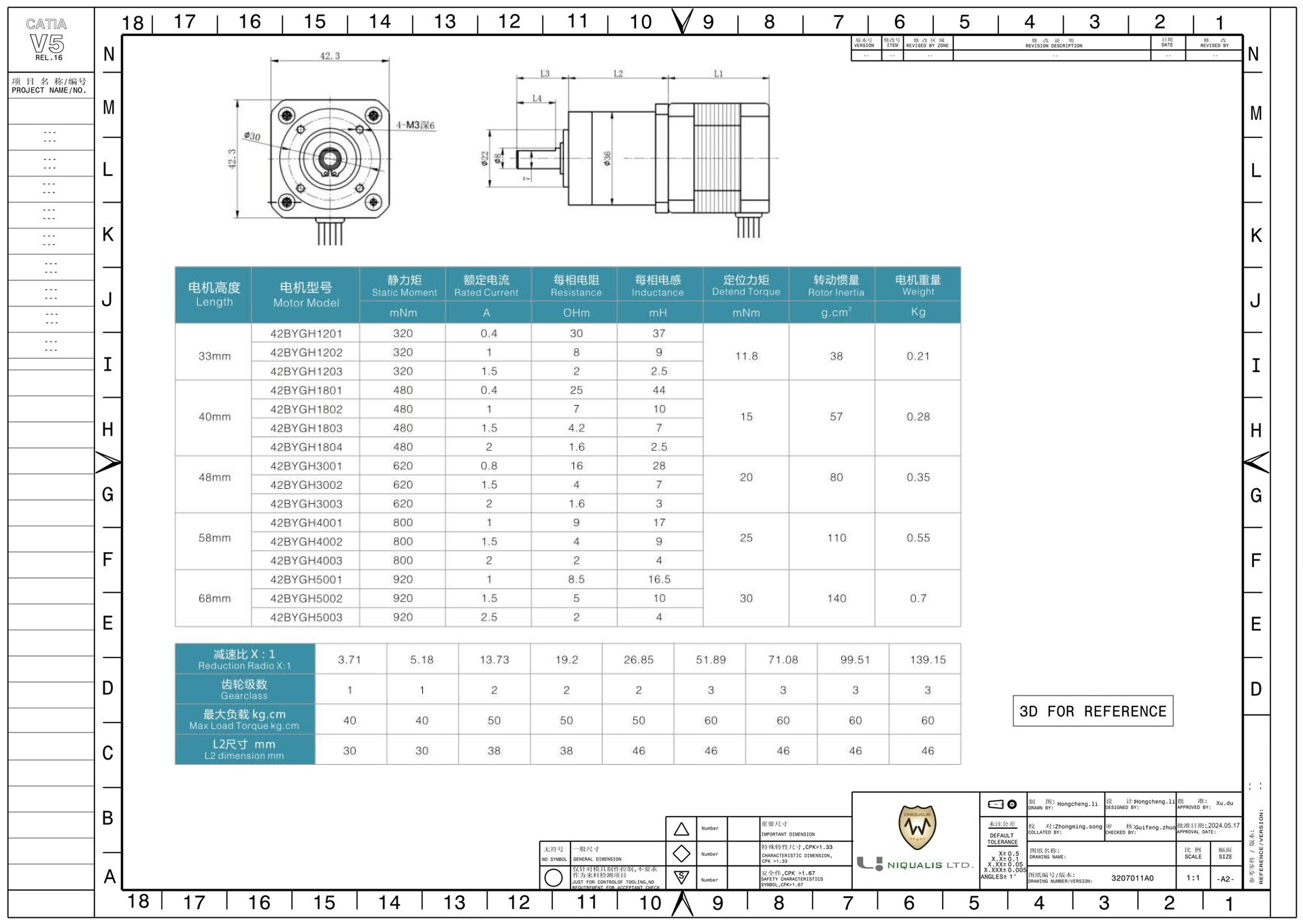

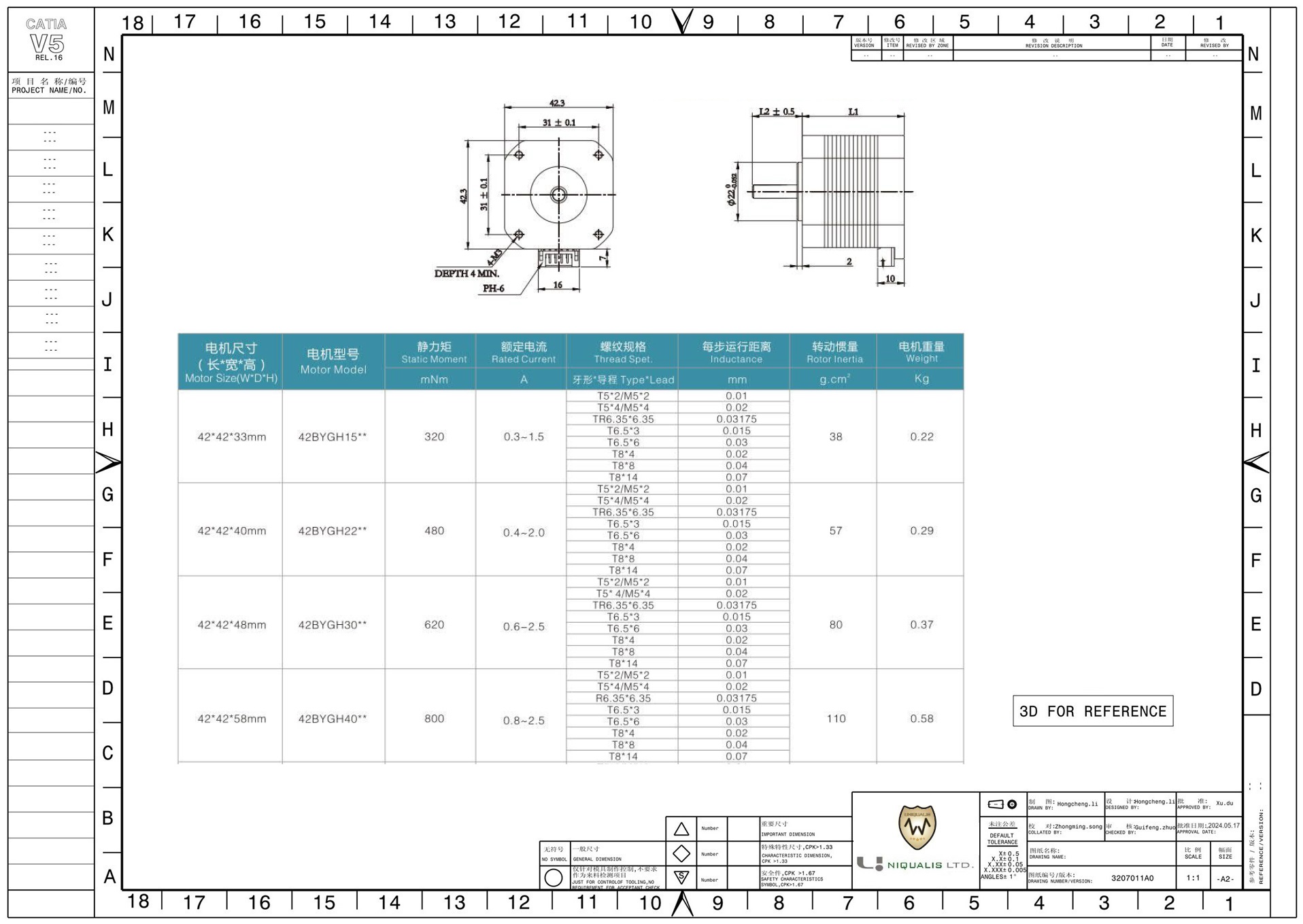

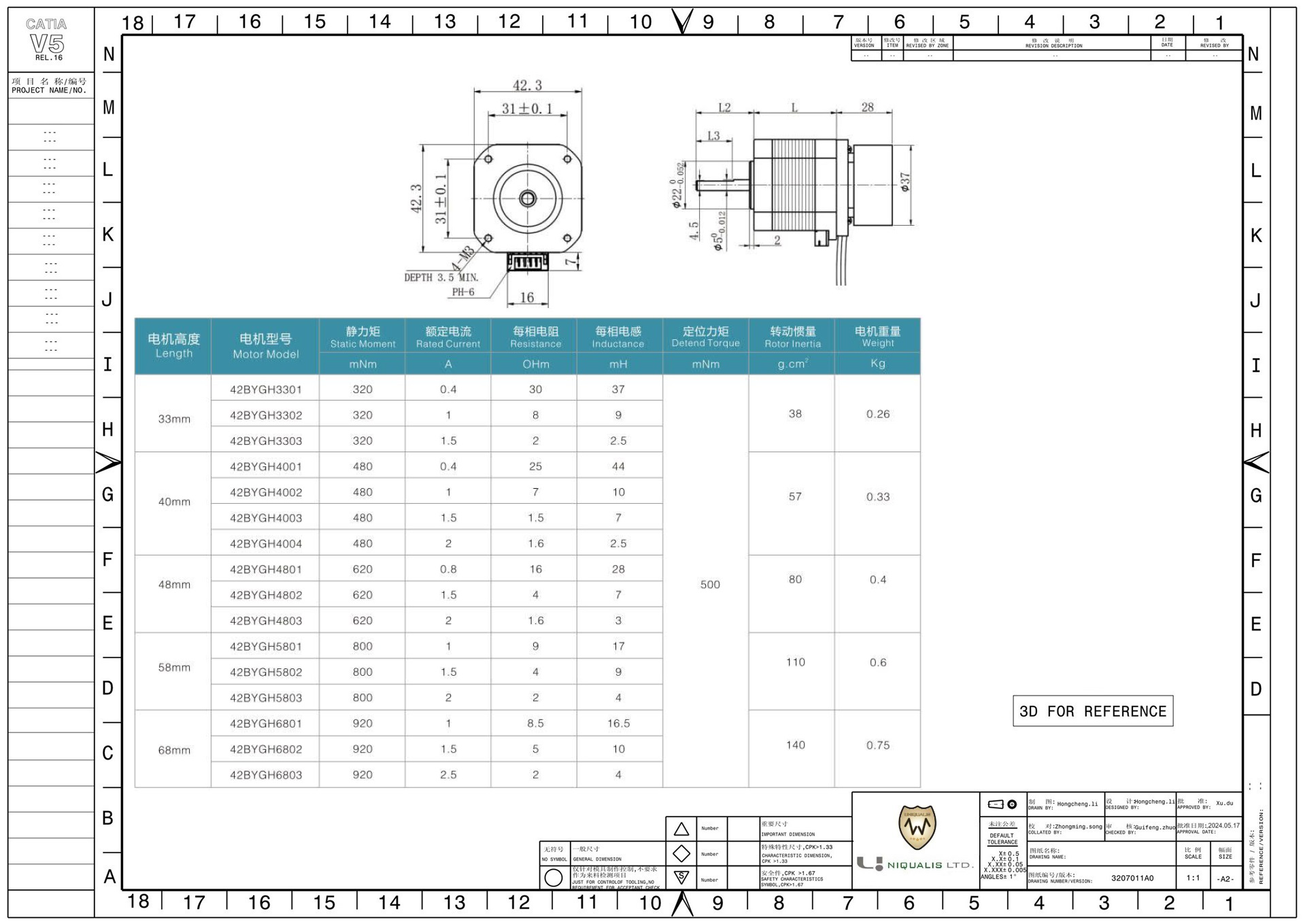

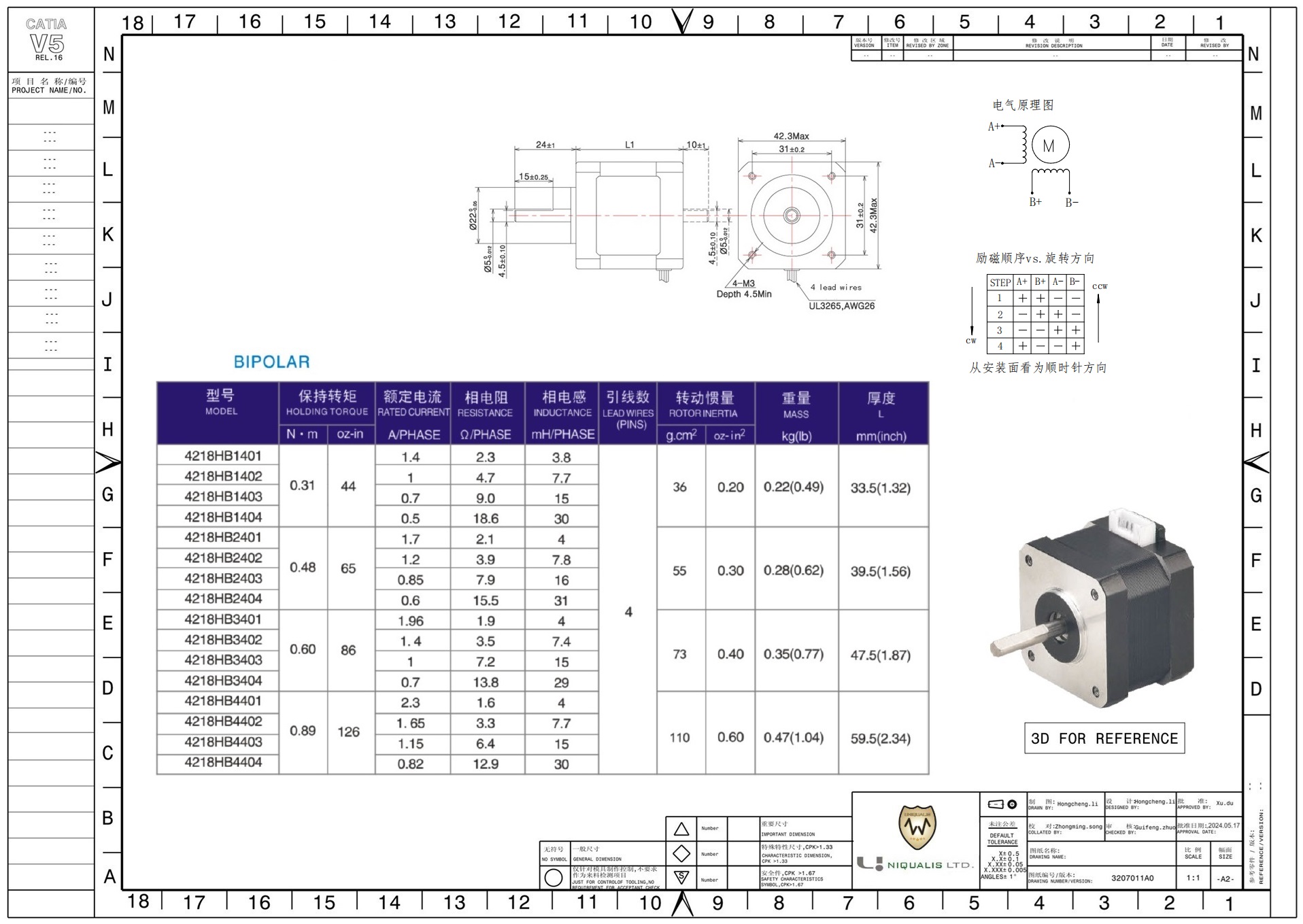

Hybrid 42mm - 2 phases 1. 8Degree
Available: In Stock Now !
Description : NEMA 17H
Length (L) (mm) 33,5 - 60
Current/Phase (A) 0,31 - 3
Holding Torque (Nm) 0,158 - 0,8
Step Angle 1,8

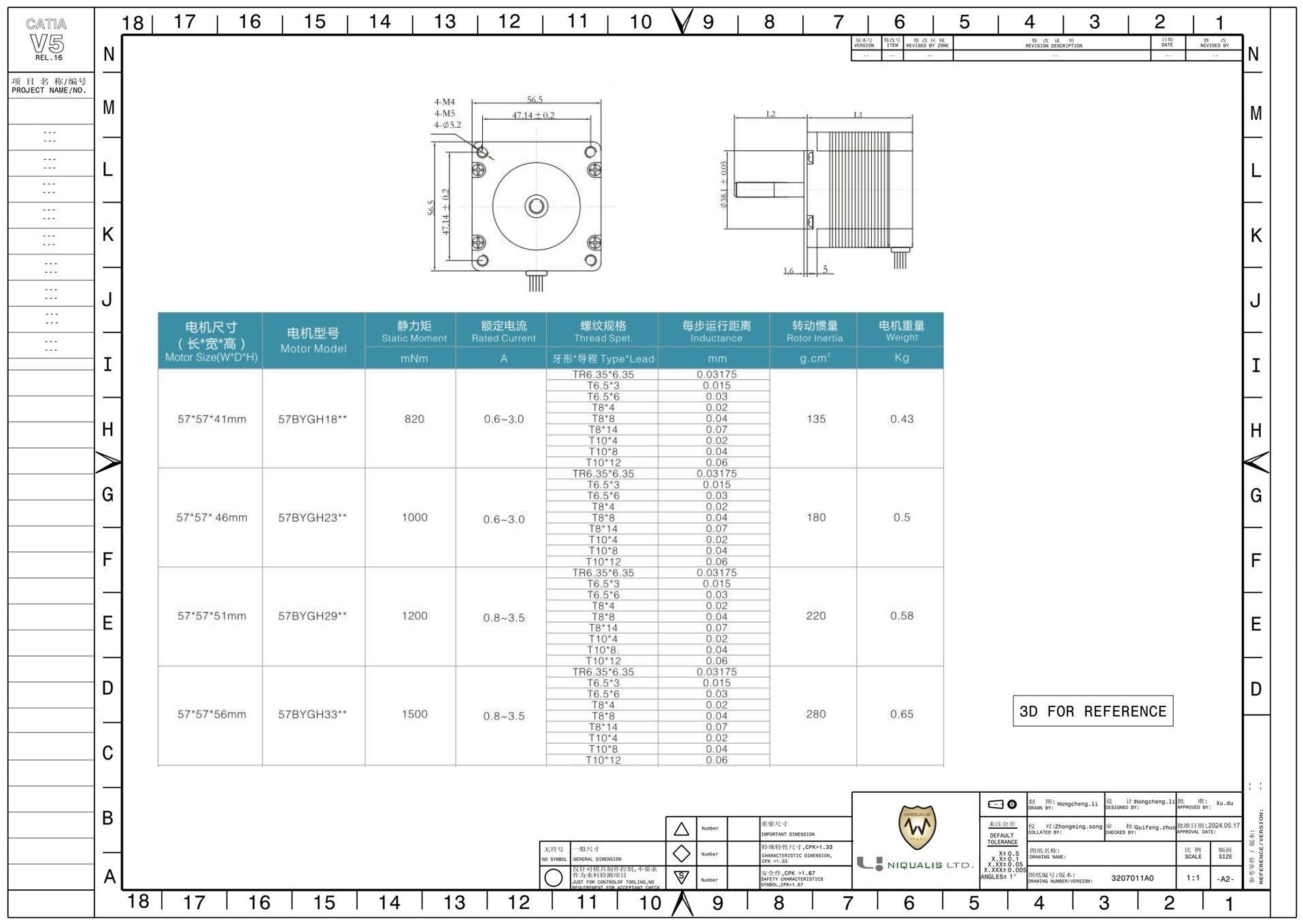

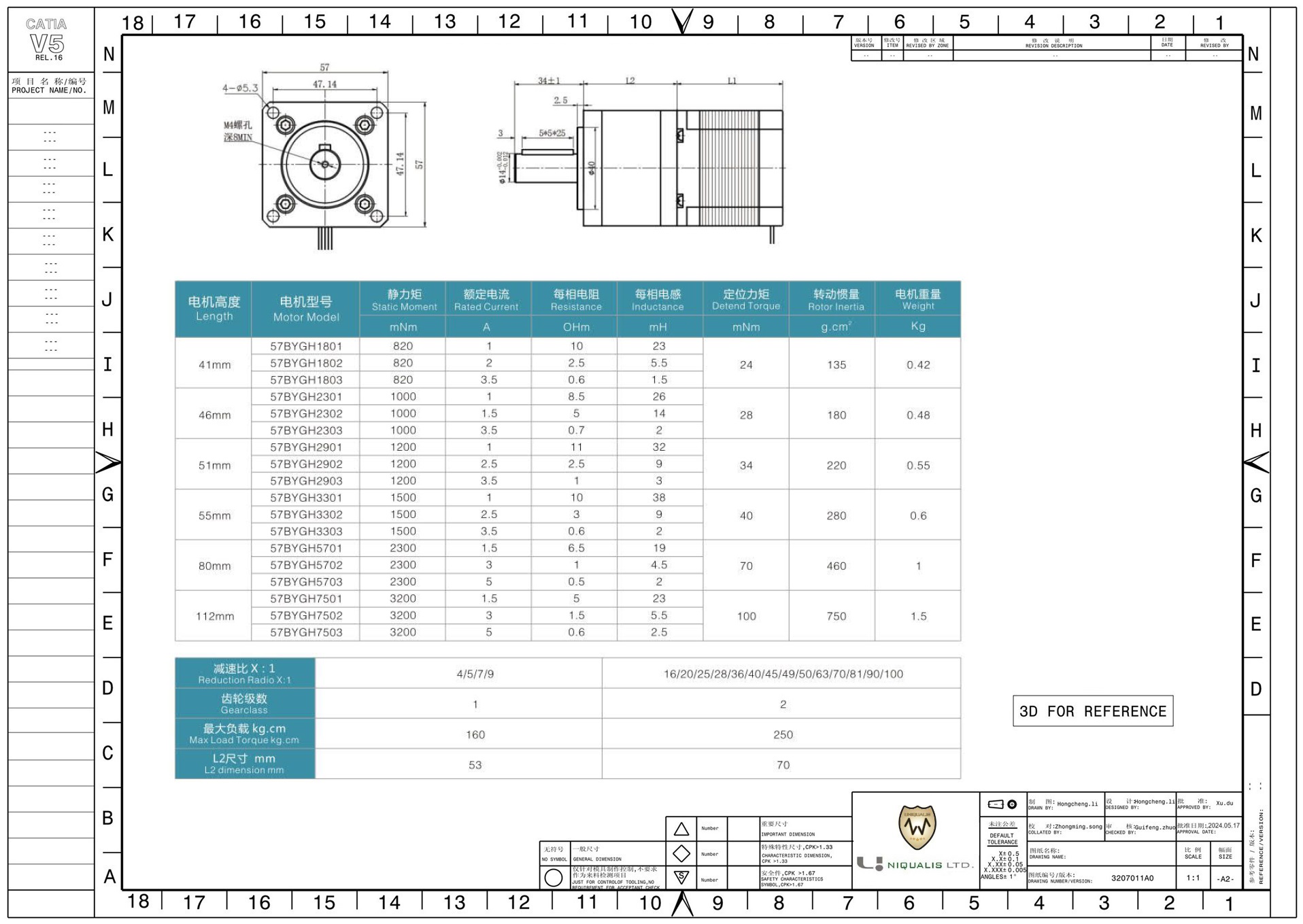

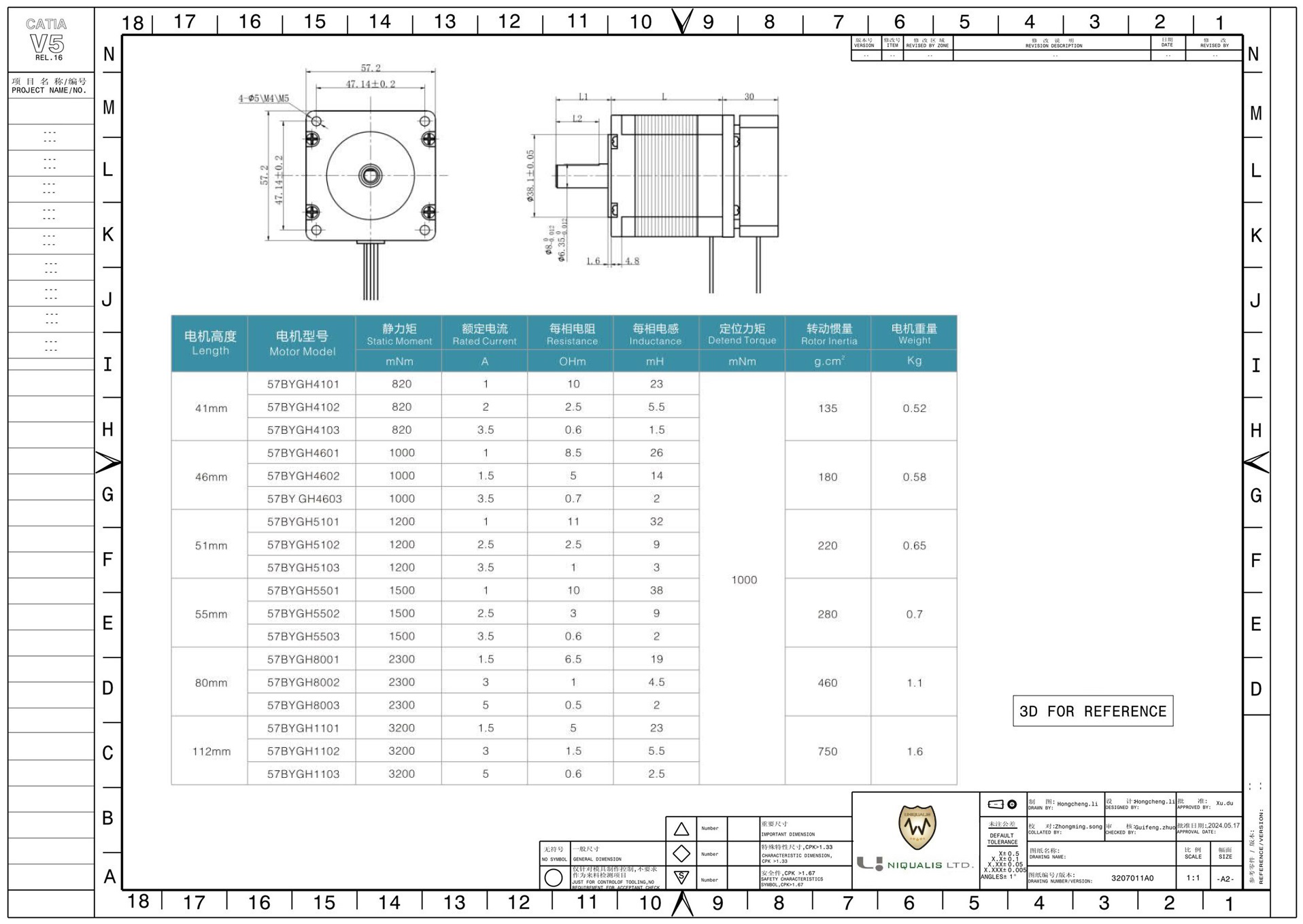

Hybrid 57mm - 2 phases 1. 8 Degree
Available: In Stock Now !
Description : NEMA 23H
Length (L) (mm) 41 - 76
Current/Phase (A) 1 -3
Holding Torque (Nm) 0,39 - 1,89
Step Angle 1,8

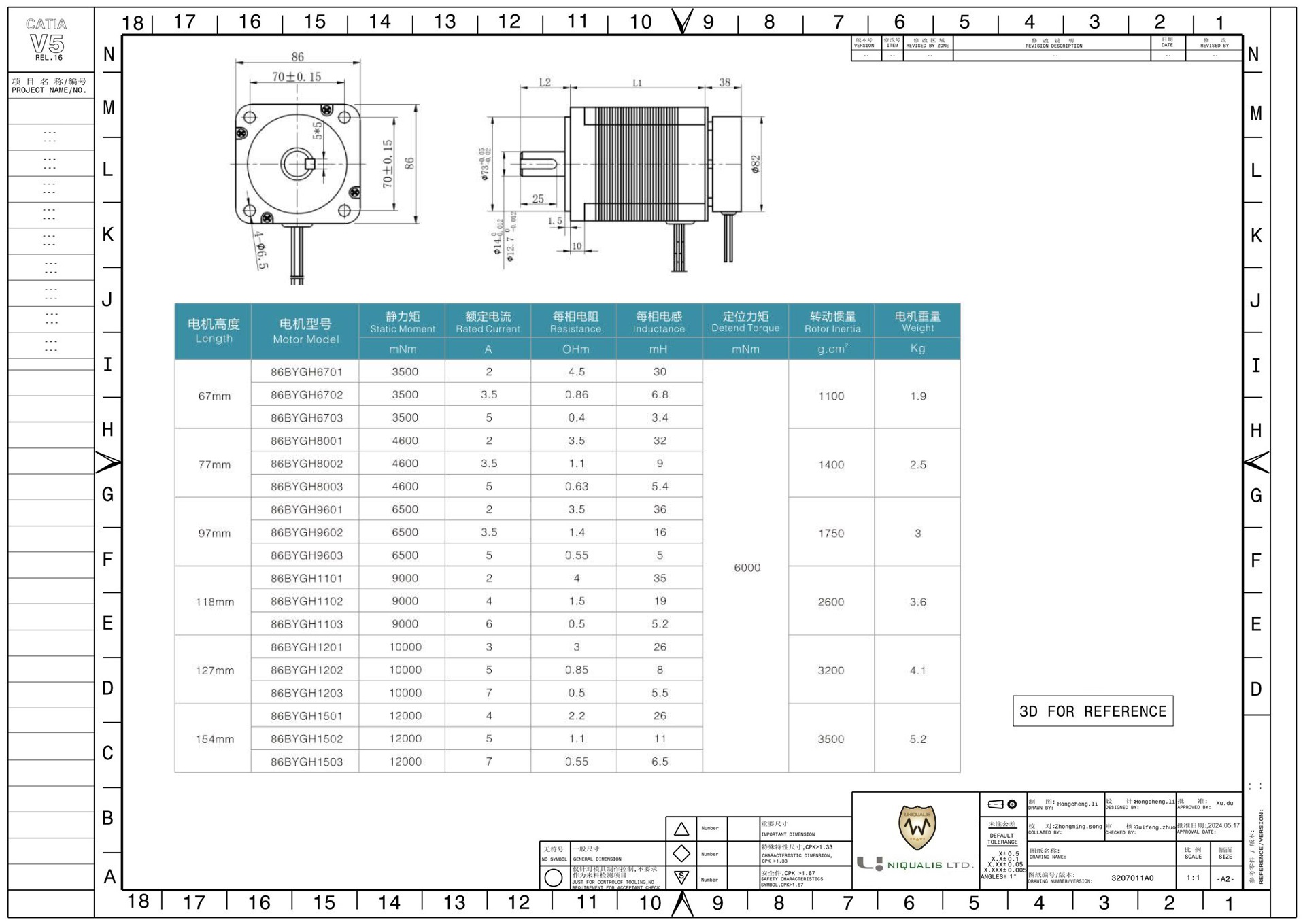

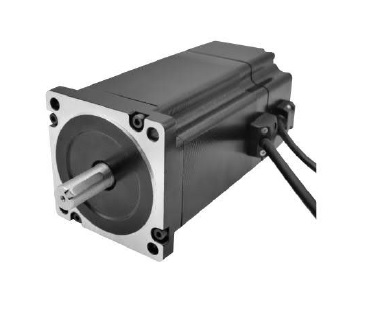

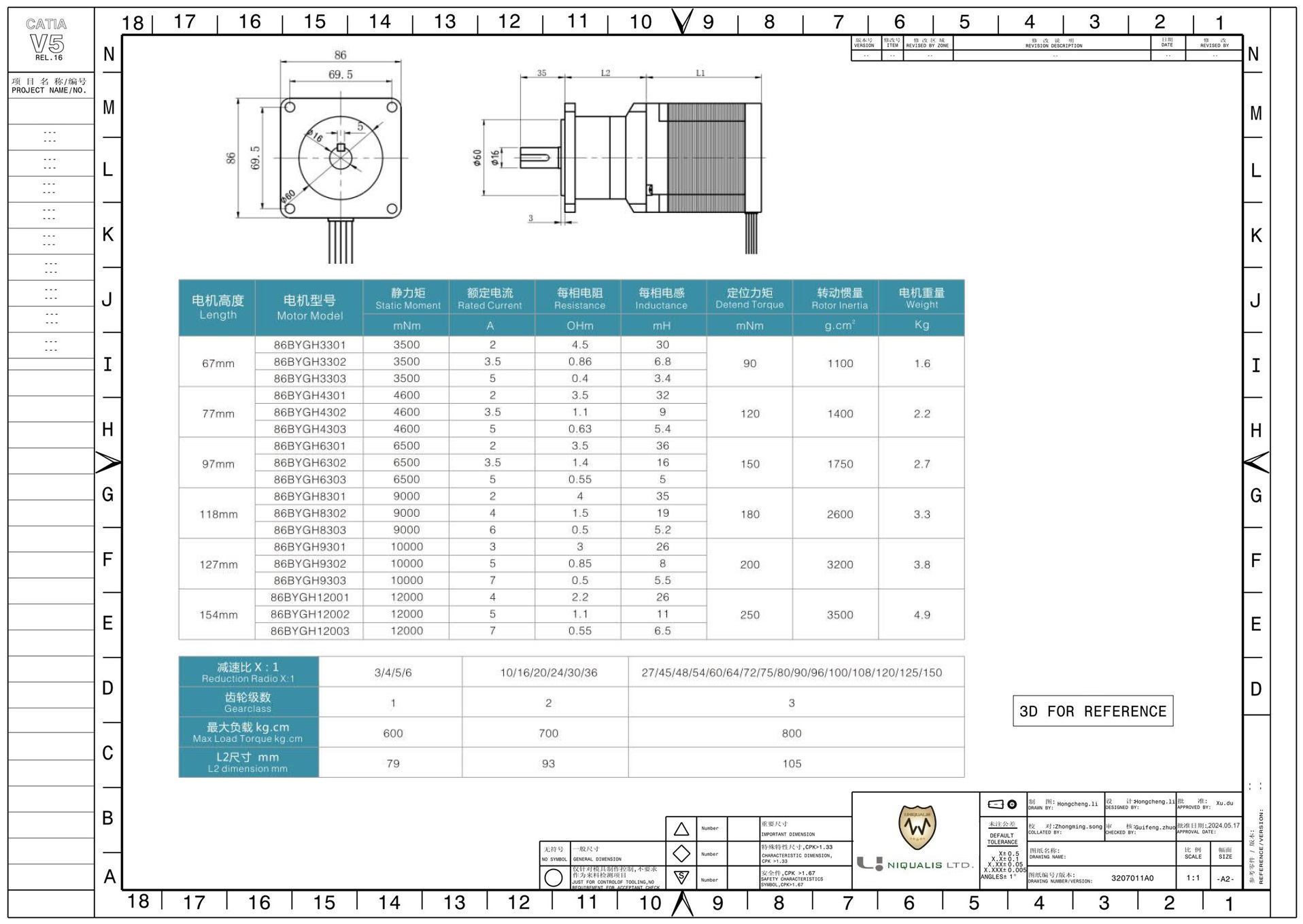

Hybrid 86mm - 2 phases 1. 8 Degree
Available: In Stock Now !
Description :
NEMA 34
Length (L) (mm) 65 - 156
Current/Phase (A) 5,5 - 6,2
Holding Torque (Nm) 3,4 - 12,1
Step Angle 1,8

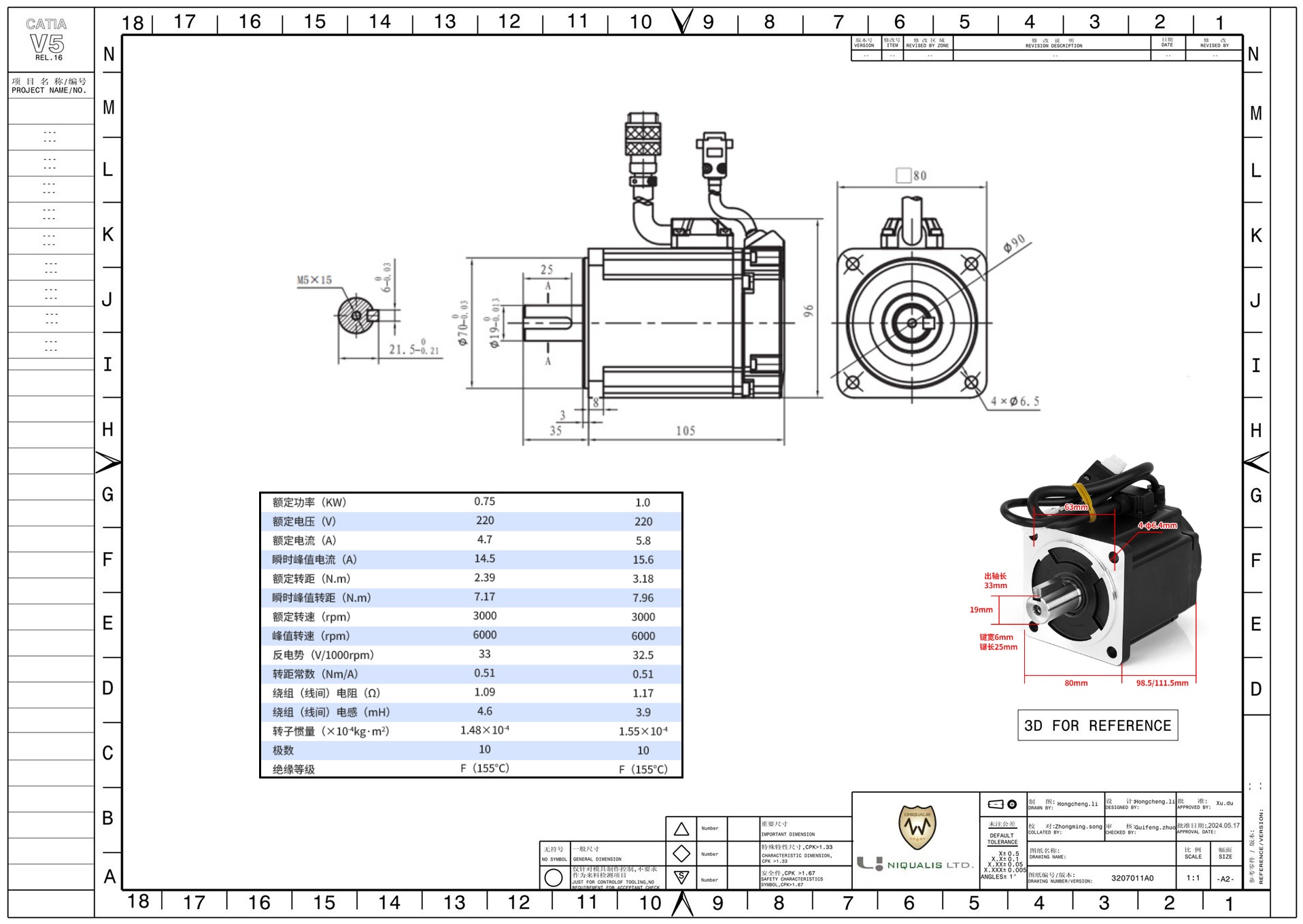

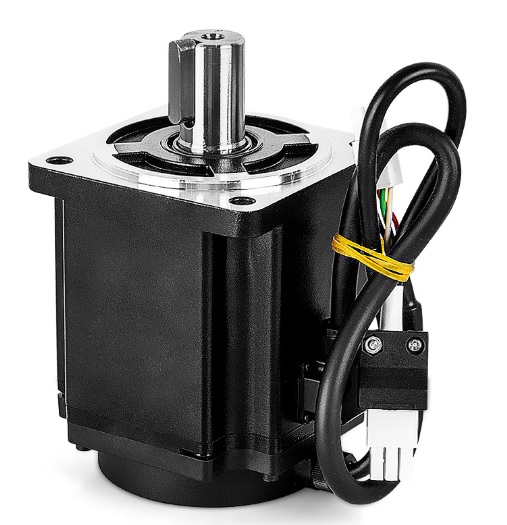

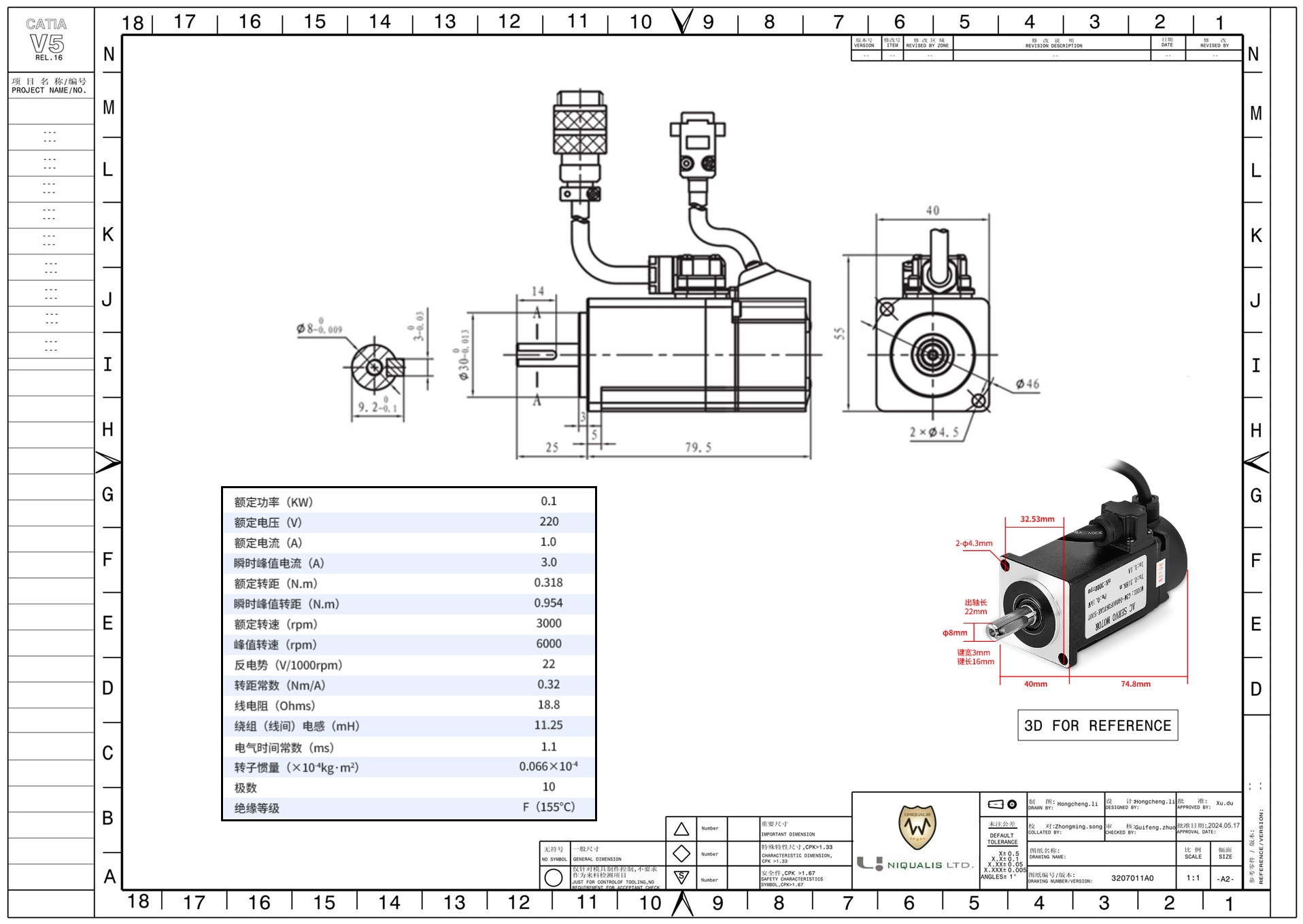

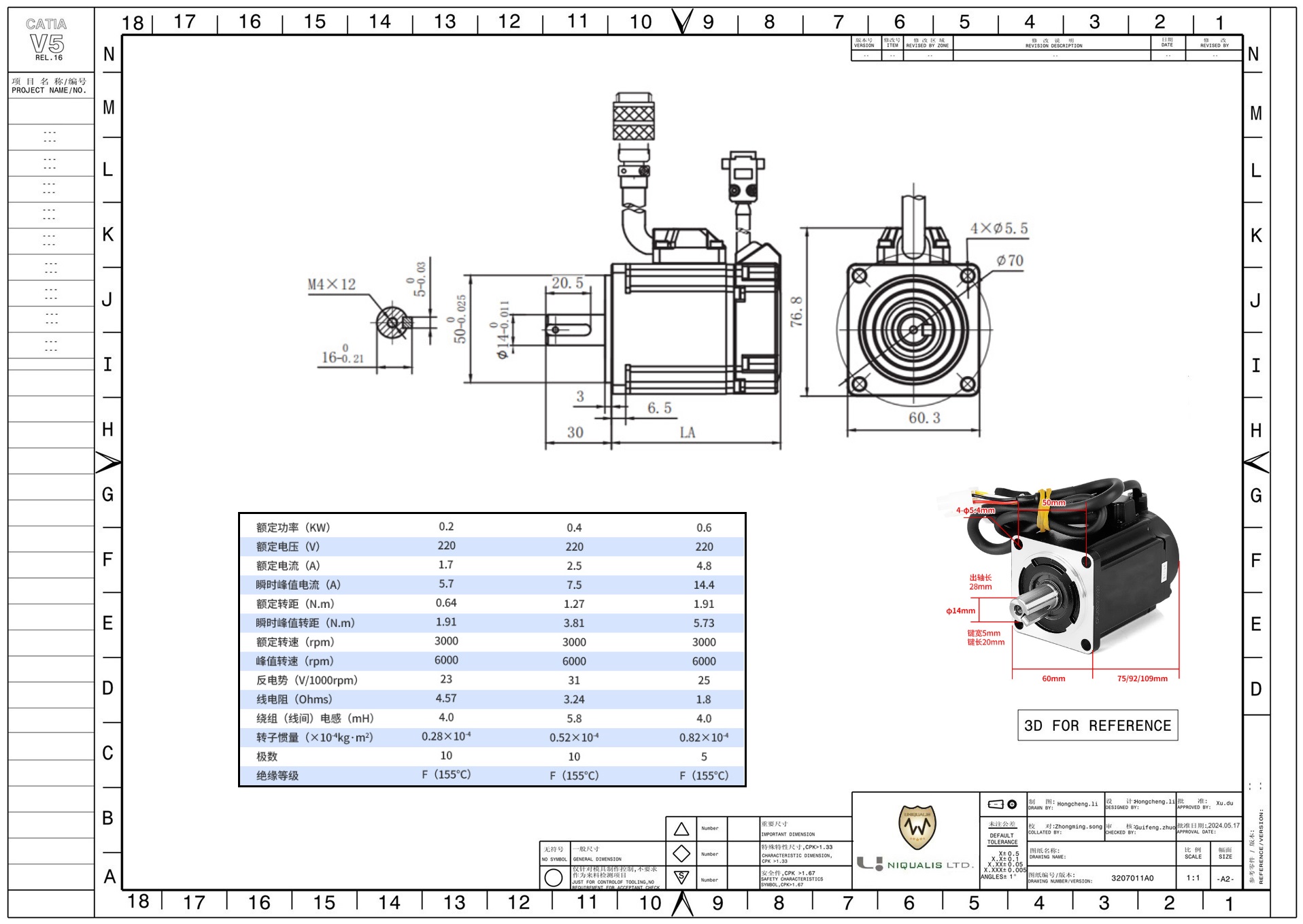

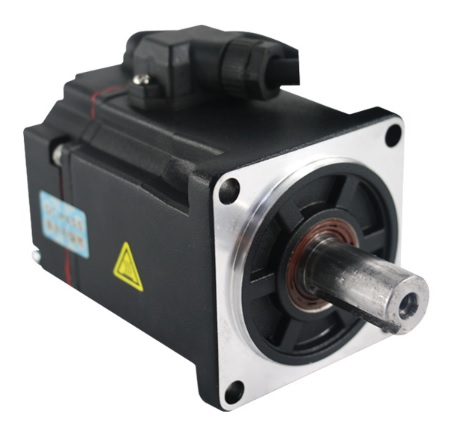

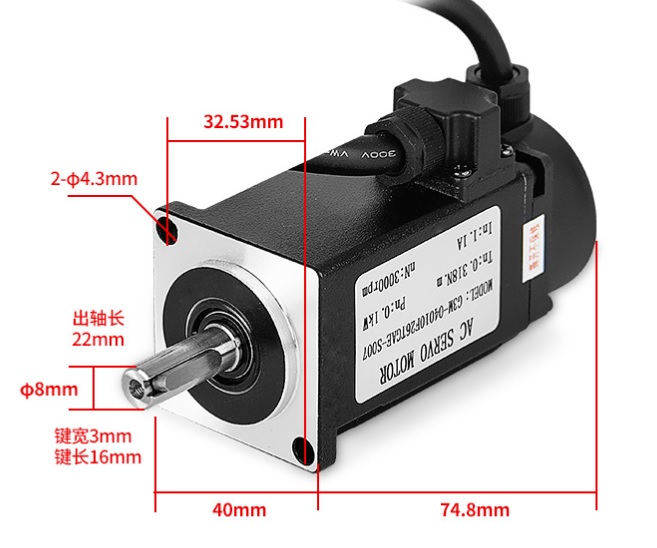

Low Voltage Servo Motor
Robot Motor and Packaging industries Motor
The low voltage servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 2000W, with 2500ppr incremental encoder or 17-bit absolute encoder.Suitable for battery-operated applications (mobile robots, AGVs etc), industrial automation applications such as movement, picking, transportation, sorting, assembly, inspection, and packaging.
Market solutions that use our motors
Improve efficiency and battery life in products like Vacuum cleaners, Electric bicycles,Wearable devices, Scanners, Massagers, Toy robot ,Drones and Minimal vibration.
Motor solutions
Enhancing EV performance and range, exemplified by electric drive axle and motor transaxle solutions for Off-road vehicles,Unmanned vehicles,Retrieval machines, Driverless transport systems and Intelligent logistics robots.
Motor solutions
Home automated robotic arm or The lawn mower robot in our garden, Motorized blinds, Curtains, Washing Machines, Dishwashers, Refrigerators, HVAC systems for tasks like agitating, rotating and controlling airflow and Smart locks.
Motor solutions
Industry 4.0, IoT, and AI require complex mechatronic systems. Uniqualis motor enhance productivity in Robotics, Conveyor systems, Pumps, Mixers and Lift actuator CCTV system or a Locking system.
Motor solutions
)
)
)
)
)
)
)
)
)
)
)
)
