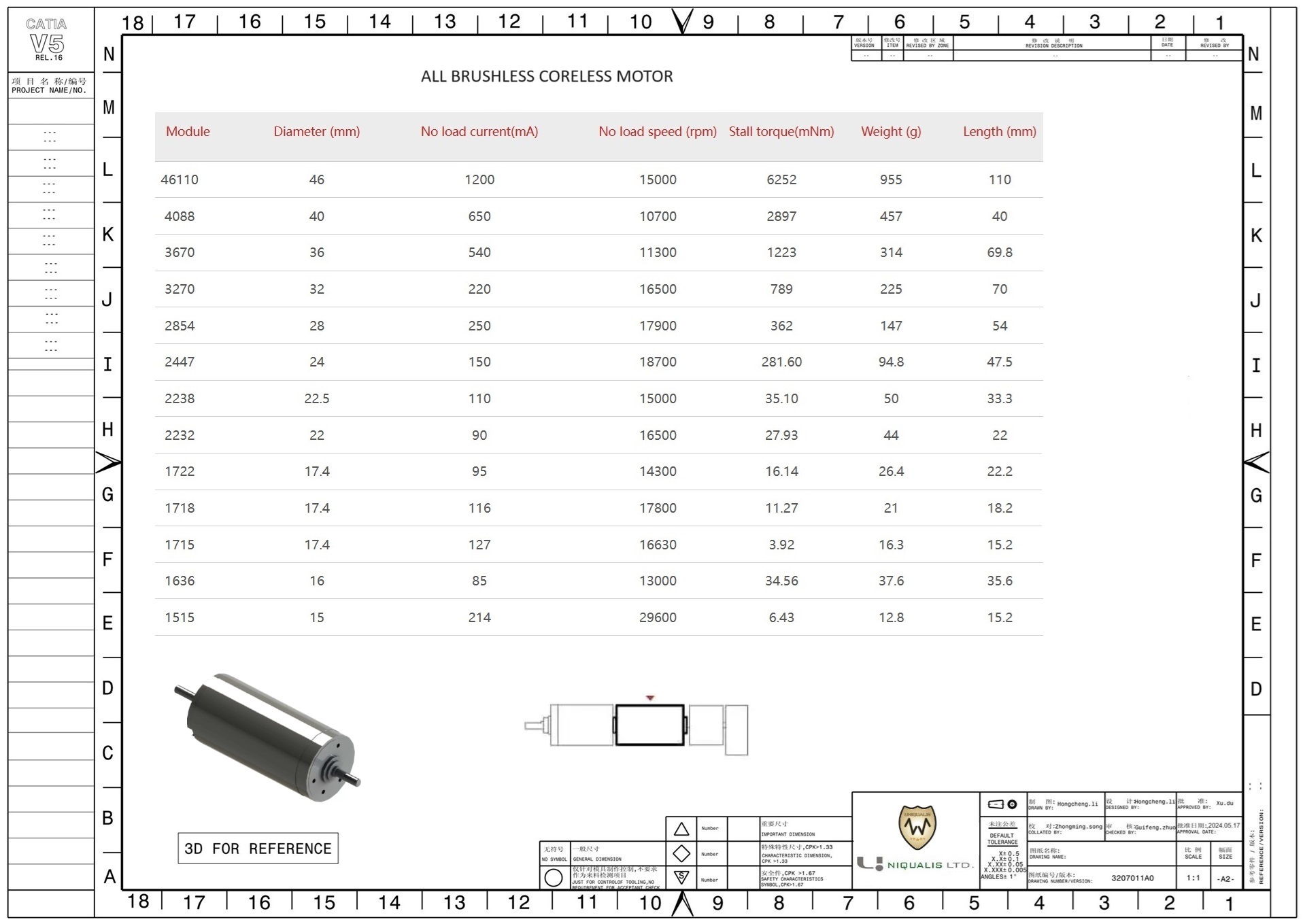

Ø3 - Ø46mm diameter Coreless Motor
Coreless and Vibration motors
 "Coreless Servo Motor")
)
Description :
Voltage 12.0 V
Terminal resistance 13.0 ohms
No-load speed 15000 rpm
No-load current 25 mA
Stall torque 6.7 mNm
Stall current 920 mA
Nominal torque 3.3 mNm
Nominal speed 7560 rpm
Nominal current 470 mA
Max. output power 2.6 W
Max. efficiency 70 %
)
Description :
Nominal Values
1. Nominal voltage 24 V
2. No load current 0.015 mA
3. No load speed 13000 rpm
4. Nominal speed 10910 rpm
5. Nominal torque / Max continuous torque 9.09mNm /28.42mNm
6 .Nominal current (continuous current) 0.525A
7. Stall torque 56.84 mNm
8 .Stall current 3.200 A
9.Rated efficiency 82.50%
10 .Max speed 14400rpm
)
)
Description :
Nominal Values
1. Nominal voltage 24 V
2. No load current 0.015 mA
3. No load speed 13000 rpm
4. Nominal speed 10910 rpm
5. Nominal torque / Max continuous torque 9.09mNm /28.42mNm
6 .Nominal current (continuous current) 0.525A
7. Stall torque 56.84 mNm
8 .Stall current 3.200 A
9.Rated efficiency 82.50%
10 .Max speed 14400rpm
)
Description :
Voltage 12.0 V
Terminal resistance 4.3 ohms
No-load speed 10000 rpm
No-load current 20 mA
Stall torque 31.5 mNm
Stall current 2790 mA
Nominal torque 8.0 mNm
Nominal speed 7460 rpm
Nominal current 720 mA
Max. output power 8.3 W
Max. efficiency 84 %
)
Description : Motor diameter range is 15mm-46mm
Voltage 12.0 V
Terminal resistance 4.3 ohms
No-load speed 10000 rpm
No-load current 20 mA
Stall torque 31.5 mNm
Stall current 2790 mA
Nominal torque 8.0 mNm
Nominal speed 7460 rpm
Nominal current 720 mA
Max. output power 8.3 W
Max. efficiency 84 %
)
)
Description :
Nominal voltage 18
No load speed rpm 13524
No load curent mA 480
Nominal speed rpm 12442
Nominal torque mNm 50
Nominal current A 4.44
Stall torque mNm 623
Stall cument A 50.00
Max eficiency 82%
Terminal resistance 0.36 ohms
)
